AES330 – Fanless System
- Intel Atom® x6212RE or x6414RE
- Supports cold boot at -40°C
- Fanless and compact design
- Wide operating temperature range -40°C~+70°C
- 9 to 36 VDC wide range power input
- 6 x isolated COM, 3 x 2.5 GbE LAN
- Supports TPM 2.0
- Windows® 10 IoT, Linux
Specifications
| PROCESSOR | Intel Atom® x6212RE processor, 1.2GHz/2C/6W
Intel Atom® x6414RE processor, 1.5GHz/4C/9W |
| CHIPSET | SoC integrated |
| SYSTEM MEMORY | 1 x DDR4-3200 SO-DIMM, up to 32GB |
| COM | 2 x Isolated RS-232/422/485 (Phoenix Type)
4 x Isolated RS-232/422/485 (4-wire, Phoenix Type) Isolation voltage: 1.5 kV |
| USB | 2 x USB 3.0 |
| ETHERNET | 3 x RJ-45 isolated 2.5 GbE LAN (Intel® i226-IT), Isolation voltage: 1.5 kV |
| SECURITY | TPM 2.0 |
| DIGITAL I/O | 1 x Isolated 8-in/8-out DIO |
| DISPLAY | 1 x HDMI (up to 1920 x 1080 @60Hz) |
| EXPANSION | 1 x M.2 (USB 3.0, PCIe; for 5G & NVMe) (optional)
1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB, PCIe (for LTE/Wi-Fi module) 1 x Half-size Rev.1.2 PCI Express Mini Card slot: USB/mSATA (for Wi-Fi/mSATA) 2 x SIM slot (1 for M.2; 1 for full-size PCI Express Mini Card) |
| STORAGE | 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
1 x Internal 2.5″ SATA drive (9.5 mm height) 1 x 8G eMMC on board |
| POWER SUPPLY | 1 x Terminal block, 9 to 36 VDC, typical 12/24V |
| WATCHDOG TIMER | 255 levels, 1 to 255 sec. |
| CONSTRUCTION | Extruded aluminium and heavy-duty steel, IP40 |
| OPERATING TEMPERATURE | -40°C to +70°C (-40°F to +158°F), Cold boot at -40°C |
| RELATIVE HUMIDITY | 10% to 95%, non-condensing |
| VIBRATION | 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating) |

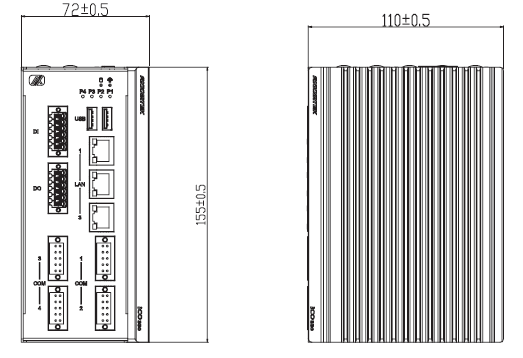

| DIMENSIONS (W X D X H) | 72 mm (W) x 110 mm (D) x 155 mm (H) |
| WEIGHT (NET/GROSS) | 1.0 kg (2.2 lb)/1.50 kg (3.3 lb) |
| CERTIFICATIONS | CE (Class A), FCC (Class A) |
| OS SUPPORT | Windows® 10 IoT, Linux |
