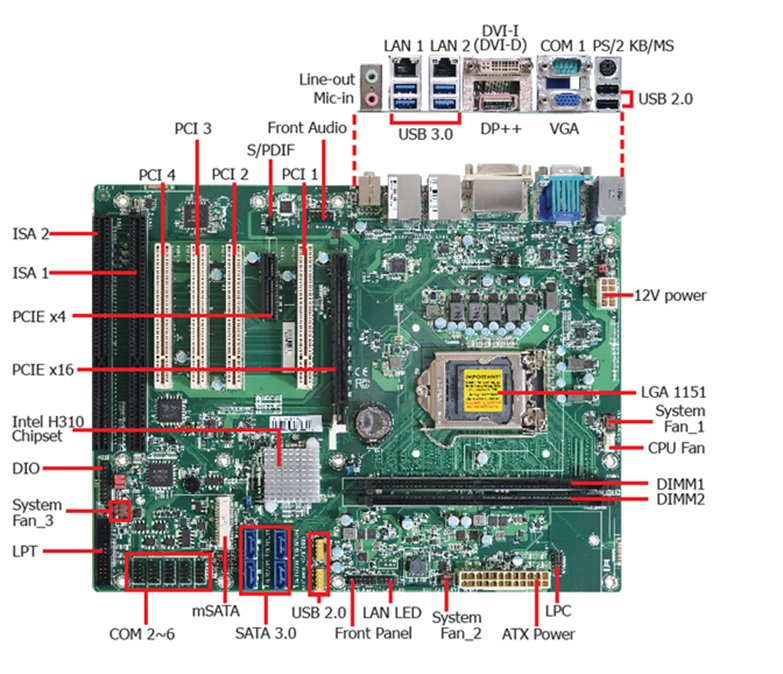

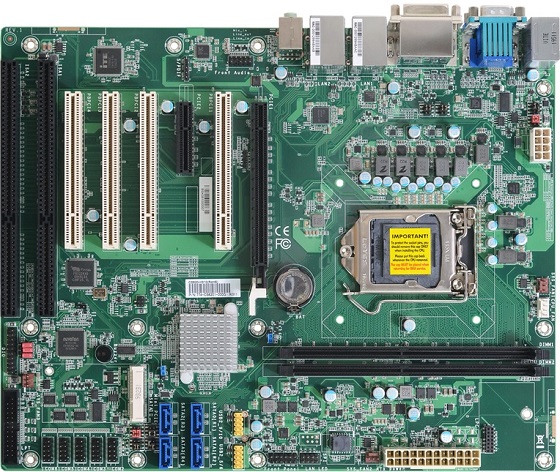

MBU4175 – ATX Motherboard
- Intel 8th/9th Gen Intel® Core™ with Intel® H310
- 2 DDR4 DIMM up to 64Gb
- Multiple expansion: 1 PCIe x16 (Gen 3), 1 PCIe x4 (Gen 2), 4 PCI, 2 ISA
- 2 independent displays: VGA + DVI-D / VGA + DP++ / DP++ + DVI-D
- Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.1 Gen 1, 6 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4′ 33 (Based on Intel IOTG Roadmap)
Specifications
| SYSTEM | PROCESSOR | 8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Processors:
Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors: Intel® Core™ i9-9900K (8 Cores, 12M Cache, up to 3.8 GHz); 95W Intel® Core™ i7-9700K (8 Cores, 12M Cache, up to 3.8 GHz); 95W Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 3.8 GHz); 65W Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 65W Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 4.2 GHz); 65W Intel® Core™ i3-9100E (4 Cores, 6M Cache, to 3.2 GHz); 65W Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 65W |
| CHIPSET | Intel® H310 Chipset | |
| MEMORY | Two 288-pin UDIMM up to 64GB
Dual Channel DDR4 2400/2666MHz |
|
| BIOS | AMI SPI 128Mbit | |
| GRAPHICS | CONTROLLER | Intel® HD Gen 9 Graphics |
| FEATURE | OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264,MPEG2,VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 |
|
| DISPLAY | 1 x VGA
1 x DVI-I (DVI-D signal) DVI-D: resolution up to 1920×1200 @ 60Hz |
|
| DUAL DISPLAYS | VGA + DVI-D / VGA + DP++ / DP++ + DVI-D | |
| EXPANSION | INTERFACE | 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 2)4 x PCI 2 x ISA (Validation by proprietary software package) |
| AUDIO | AUDIO CODEC | Realtek ALC887 |
| ETHERNET | CONTROLLER | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V LAN Phy (10/100/1000Mbps) |
| REAR I/O | ETHERNET | 2 x GbE (RJ-45) |
| SERIAL | 1 x RS-232/422/485 (RS-232 w/power (DB-9) | |
| USB | 4 x USB 3.1 (Gen1)
2 x USB 2.0 |
|
| PS/2 | 1 x PS/2 (mini-DIN-6) | |
| DISPLAY | 1 x VGA
1 x DVI-I (DVI-D signal) |
|
| AUDIO | 1 x Line-out, 1 x Mic-in, 1 x Line-in (Colay Line-In as opt., MOQ required) | |
| INTERNAL I/O | SERIAL | 1 x RS-232/422/485 9RS-232 w/power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch) |
| USB | 4 x USB 2.0 (2.54mm pitch) (one header Colay USB 3.0 vertical Type A as opt. MOQ required) | |
| AUDIO | 1 x S/PDIF 1 x Front Audio Header | |
| SATA | 4 x SATA 3.0
1 x mSATA shared with SATA |
|
| DIO | 1 x 8-bit DIO | |
| LPC | 1 x LPC | |
| SMBUS | 1 x SMBus | |
| OUTPUT & INTERVAL | System Reset, Programmable via Software from 1 to 255 Seconds | |
| SECURITY TPM | TPM2.0 (opt., MOQ required) | |
| TYPE | ATX | |
| CONNECTOR | 8-pin ATX 12V power
24-pin ATX power |
|
| CONSUMPTION | Typical: i7-8700K: 3.3V @ 0.27A (0.89W); 5V @ 0.49A (2.45W); 12V @ 0.38A (4.56W)
Max.: i7-8700K: 3.3V @ 0.33A (1.08W); 5V @ 1.2A (6W); 12V @ 9.69A (116.28W) |
|
| RTC BATTERY | CR2032 Coin Cell | |
| OS SUPPORT | Windows 10 Pro 64-bit (Without ISA support)
Windows 10 IoT Enterprise 64-bit (Without ISA support) Manufacturer proprietary software package required (ISA validated). Please contact us for more information.) |
|
| ENVIRONMENT | TEMPERATURE | Operating: -5 to 65°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery |
| HUMIDITY | Operating: 5 to 90% RH
Storage: 5 to 90% RH |
|
| MTBF | 551,561 hrs @ 25°C; 313,962 hrs @ 45°C ; 196,617 hrs @ 60°C
Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
|
| MECHANICAL | DIMENSIONS | ATX Form Factor 305mm (12″) x 244mm (9.6″) |
| HEIGHT | PCB: 1.6mm Top Side: TBD Bottom Side: TBD | |
| CERTIFICATIONS | CE, FCC, RoHS |
