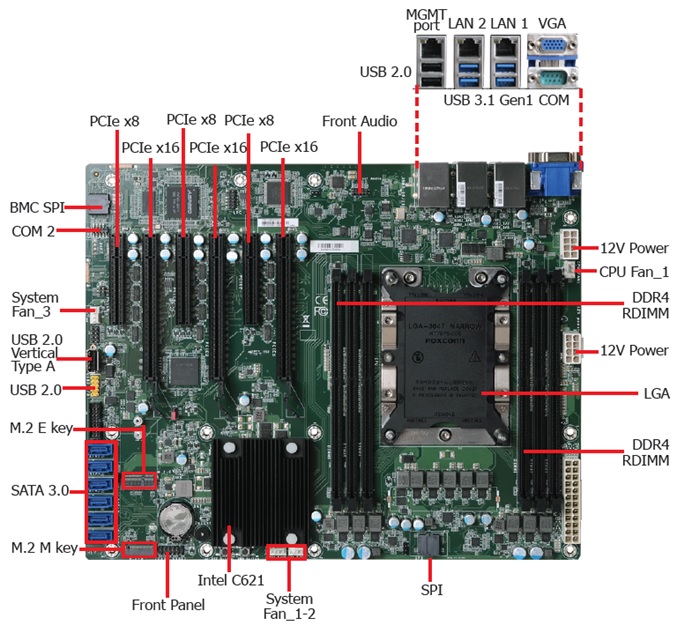

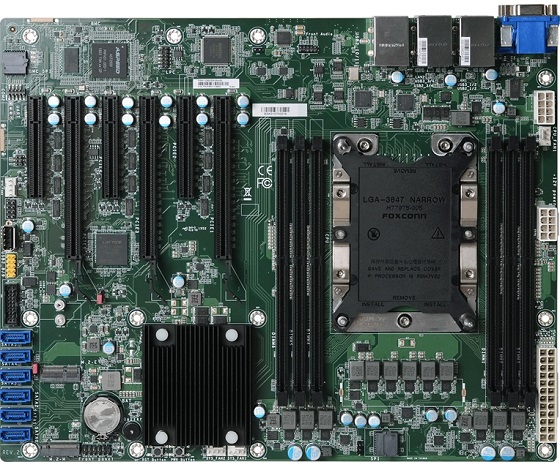

MBU4174 – ATX Motherboard
- 1st/2nd Gen Intel® Xeon® Scalable Family
- Intel® C621 Chipset
- 6 DDR4 RDIMM up to 192GB
- Multiple expansion: 3 PCIe x16, 3 PCIe x8 (share w/ PCIe x16), 2 M.2
- Rich I/O: 2 Intel GbE, 1 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen 1
- 6 x SATA 3.0, supports RAID 0/1/5/10
- 15-Year CPU Life Cycle Support Until Q3′ 30 (Based on Intel IOTG Roadmap)
Specifications
| SYSTEM | PROCESSOR | 1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket: Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W |
| CHIPSET | Intel® C621 Chipset | |
| MEMORY | Six 288-pin RDIMM up to 192GB
Single Channel DDR4 up to 2933MHz |
|
| BIOS | Insyde SPI 128Mbit | |
| GRAPHICS | CONTROLLER | 1 x VGA |
| FEATURE | N/A | |
| DISPLAY | VGA | |
| TRIPLE DISPLAYS | N/A | |
| EXPANSION | INTERFACE | 3 x PCIe x16 (Gen 3) 3 x PCIe x8 (Gen 3) (share w/PCIe x16) 1 x M.2 Key 2280 (PCIe/SATA Gen 3 x4 NVMe) 1 x M.2 E Key 2230 (USB 2.0/PCIe Gen 3 x2) |
| AUDIO | AUDIO CODEC | ALC887 |
| ETHERNET | CONTROLLER | 2 x Intel® I210AT PCIe (10/100/1000Mbps)
IPMI: RTL8211F |
| REAR I/O | ETHERNET | 2 x GbE (RJ-45)
1 x dedicated IPMI LAN (opt., MOQ required) |
| SERIAL | 1 x RS-232 (DB-9) | |
| USB | 4 x USB 3.1 (Gen1)
2 x USB 2.0 stack (opt., MOQ required w/ RJ45+USB2.0 stack) |
|
| PS/2 | N/A | |
| DISPLAY | VGA | |
| AUDIO | N/A | |
| INTERNAL I/O | SERIAL | N/A |
| USB | 2 x USB 2.0 header (2 x USB 2.0)
1 x USB 2.0 vertical Type A 1 x USB 3.1 Gen 1 header (2 x USB 3.1 Gen 1) |
|
| AUDIO | N/A | |
| SATA | 6 x SATA 3.0
RAID 0/1/5/10 |
|
| DIO | N/A | |
| LPC | N/A | |
| SMBUS | 1 x SMBus | |
| OUTPUT & INTERVAL | System Reset, Programmable via Software from 1 to 255 Seconds | |
| SECURITY TPM | TPM2.0 (opt., MOQ required) | |
| TYPE | ATX | |
| CONNECTOR | 8-pin ATX 12V power
24-pin ATX power |
|
| CONSUMPTION | Idle: Xeon Gold 5218 – 3.3V @ 0.06A (0.198Watt); 5V @ 1.75A (8.75Watt); 12V @ 1.67A (20.04Watt) Max.: Xeon Gold 5218 – 3.3V @ 0.08A (0.264Watt); 5V @ 2.94A (14.7Watt); 12V @ 11.53A (138.36Watt) Idle: Xeon Platinum 8276M – 3.3V @ 0.03A (0.099Watt); 5V @ 1.65A (8.25Watt); 12V @ 1.63A (19.56Watt) Max.: Xeon Platinum 8276M – 3.3V @ 0.05A (0.165Watt); 5V @ 2.65A (13.25Watt); 12V @ 18.43A (221.16Watt) |
|
| RTC BATTERY | CR2032 Coin Cell | |
| OS SUPPORT | Windows 10 IoT Enterprise LTSB RS5 64-bit
Windows Server 2019 Windows Server 2016 Linux |
|
| ENVIRONMENT | TEMPERATURE | Operating: -5 to 65°C Storage: -40 to 85°C |
| HUMIDITY | Operating: 5 to 90% RH, Non-condensing
Storage: 5 to 90% RH, Non-condensing |
|
| MTBF | 558,025 hrs @ 25°C; 339,879 hrs @ 45°C ; 224,136 hrs @ 60°C With IPMI-Mgnt: 510,709 hrs @ 25°C; 306,113 hrs @ 45°C ; 200,130 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
|
| MECHANICAL | DIMENSIONS | ATX Form Factor 305mm (12″) x 244mm (9.6″) |
| HEIGHT | PCB: 1.6mm Top Side: 37.34mm | |
| CERTIFICATIONS | CE, FCC, RoHS |
