ICOM745 – 7 Slot ATX Systems
- Wallmount/Desktop Industrial system
- 16″ x 8″ x 13″ (D x H x W)
- 2 PCIe & 5 PCI expansion slots
- Supports Intel® 8th/9th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® H310 Chipset
- 2 DDR4 DIMMs up to 128GB
- 2 Display Outputs: VGA, DVI-I, DP++
- I/O: 2 LAN, 6 COM, 4 USB 3.1 Gen 1, 6 USB 2.0
- Windows 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q1 2033
Specifications
| PROCESSOR | 8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Processors:
Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W (Non-LTS) Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors: Intel® Core™ i9-9900K (8 Cores, 12M Cache, up to 3.8 GHz); 95W Intel® Core™ i7-9700K (8 Cores, 12M Cache, up to 3.8 GHz); 95W Intel® Core™ i7-9700E (8 Cores, 12M Cache, up to 3.8 GHz); 65W Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W |
| CHIPSET | Intel® H310 Chipset |
| MEMORY | Two 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666MHz |
| BIOS | SPI 128Mbit |
| STORAGE | Supports 2x external 5.25”, 1x external 3.5” & 1x internal 3.5” drive bays
Supports 4 x SATA 3.0 Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 2)5 x PCI |
| POWER SUPPLY OPTIONS | 400W ~ 600W
90~250VAC DC 12~48V Redundant Power Supplies |
| AUDIO | Realtek ALC888 |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V LAN Phy (10/100/1000Mbps) |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro
Windows 10 IoT Enterprise 64-bit Linux |
| DISPLAY | 1 x VGA resolution up to 1920×1200 @ 60Hz
1 x DVI-I (DVI-D signal) resolution up to 1920×1200 @ 60Hz |
| MULTI-DISPLAY OUTPUTS | Supports Dual Displays: VGA + DVI-D / VGA + DP++ / DP++ + DVI-D |

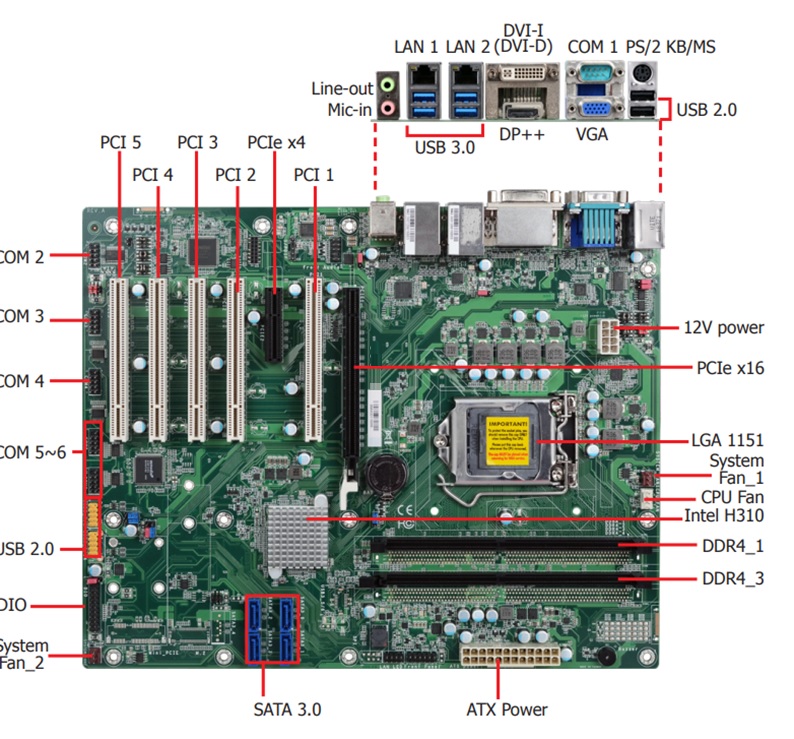

| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.1 (Gen1) 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 9RS-232 w/power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch), 4 x USB 2.0 |
| FRONT CHASSSIS CONNECTORS | PS/2 keyboard connector in front panel
Optional USB ports |
| DRIVE BAYS | 2x external 5.25”
1x external 3.5” 1x internal 3.5” drive bays |
| MOTHERBOARD MTBF | 551,561 hrs @ 25°C; 313,962 hrs @ 45°C ; 196,617 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operation Temperature: 0 °C to +50 °C continuous operation
Storage Temperature: -20 °C to +70 °C Humidity: 10 % to 93 % @40 °C, non-condensing (Dependent on overall system specification) |
| COOLING | 12cm ball-bearing fan with replaceable filter |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 330 x 406 x 204.2 mm (13 x 16 x 8 inches) |
