ICOM4152 4U Rackmount Computer
- 4U 19″ Industrial Rackmount System
- 18.58″ depth
- 3 PCIe x16, 2 PCIe x8, 1 x M.2 M keys
- Supports 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A Chipset, RAID 0/1/5/10
- 8 ECC-RDIMMs up to 512GB DDR4
- 1 Display Outputs: VGA
- I/O: 2 10GbE lan, 2 GbE, 1 Dedicated IPMI, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0
- Windows 10 IoT, Server 2019 & Linux Support
- CPU Life Cycle Support Until Q2 2036
Description
Industrial 4U Rackmount Xeon® Scalable Processor System
The Industrial ICOM4152 System powered by Intel® Ice Lake processor has been designed to provide fast computing whilst being highly expandable. Designed for AI workload, AOI, CT and deep learning applications, makes the ICOM4152 one of best in class platforms provided by Kontron UK today.
Specifications
| PROCESSOR | 3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+) |
| CHIPSET | Intel® C621A Chipset |
| MEMORY | Eight x 288-pin ECC-RDIMM up to 512GB
Single Channel DDR4 up to 3200 MHZ |
| BIOS | Insyde SPI 128Mbit |
| STORAGE | Supports 3x 5.25” SATA drive bays
Supports RAID 0, 1, 5, 10 1 x M.2 2280 M key (PCIe Gen3 x 4 NVMe/SATA) Optional removable hard disk drives or solid state disks |
| OPTICAL | Optional DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 3 x PCIe x16 (Gen 4)(Slot 1 share w/ 2 x8)
2 x PCIe x8 (Gen 4) 1 x M.2 2280 M key (SATA/PCIe Gen3 x4 NVMe) |
| POWER SUPPLY OPTIONS | 400W ~ 700W
90~250VAC DC 12~48V 500W Redundant Power Supplies |
| AUDIO | N/A |
| ETHERNET | 2 x Intel® I210AT PCIe (10/100/1000Mbps)
2 x Intel® X550-AT2 PCIe (10Gbps) IPMI: RTL8211F |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro 64-bit
Windows 10 IoT Enterprise 64-bit Windows Server 2019 Linux (Ubuntu 20.04 |
| DISPLAY | 1 x VGA |
| MULTI-DISPLAY OUTPUTS | N/A |
| REAR I/O PORTS | 2 x GbE (RJ-45) 2 x 10GbE (RJ-45) 1 x Dedicated IPMI LAN1 x RS-232 (DB-9)4 x USB 3.1 Gen1 (w/ RJ45 + USB 3.1 stack) 2 x USB 2.0 (w/ RJ45 + USB 2.0 stack)1 x VGA (DB-15) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232 (2×5-pin)
2 x USB 3.1 Gen1 2 x USB 2.0 1 x USB 2.0 Vertical Type A 1 x 16-bit DIO 1 x LPC 1 x SMBus Infineon TPM2.0 (opt., MOQ required) |
| FRONT CHASSSIS CONNECTORS | 2 x USB (Unless 2 x USB 2.0 is used for rear slot mounting, if so 1 x USB port) |
| DRIVE BAYS | 3x 5.25” SATA drive bays
1x 2.5”/ 3.5” SATA drive internal RAID support |
| MOTHERBOARD MTBF | TBD |
| ENVIRONMENT | Operating Temperature: -5 to 65°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery Humidity: 10 % to 93 % @40 °C, non-condensingOperating Humidity: 5 to 90% RHStorage: 5 to 90% RH(Dependent on overall system specification) |
| VIBRATION | Operating: 10-150 Hz: 1G/3 axis
Non-operating: 10-150 Hz: 2G/3 axis |
| COOLING | Removable air filter
Two low noise hot-swap system cooling fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 177 x 482 x 472 mm (4U x 19” x 18.58”) |

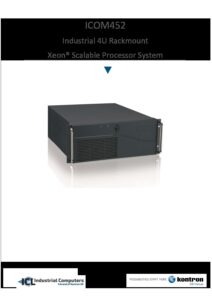

Downloads
