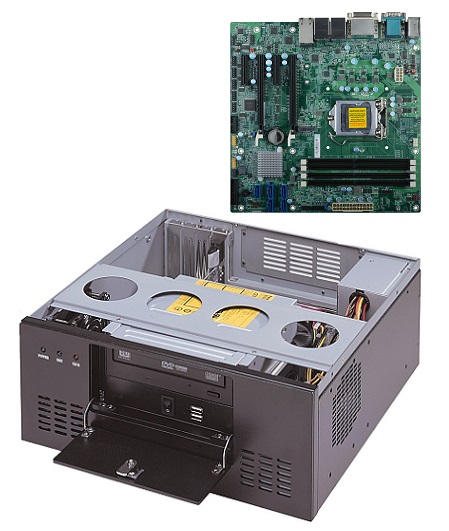

ICOM727 – 4 Slot Micro ATX Systems
- Wallmount/Desktop Industrial system
- 13.4″ x 5.36″ x 13.26″ (D x H x W)
- 4 PCIe expansion slots
- Supports Intel® 6th/7th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® Q170 chipset, RAID 0/1/5/10
- 4 DDR4 DIMMs up to 64GB
- 3 Display Outputs: VGA, DVI-I, DP++
- I/O: 4 LAN, 6 COM, 6 USB 3.0, 6 USB 2.0
- Windows 7, 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q1 2032
Specifications
| PROCESSOR | 7th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Processors TDP up to 95W:
Intel® Core™ i7-7700K (4 Cores, 8M Cache, up to 4.5 GHz); 91W (Non-LTS) Intel® Core™ i7-7700 (4 Cores, 8M Cache, up to 4.2 GHz); 65W Intel® Core™ i7-7700T (4 Cores, 8M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-7500 (4 Cores, 6M Cache, up to 3.8 GHz); 65W Intel® Core™ i5-7500T (4 Cores, 6M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-7101E (2 Cores, 3M Cache, 3.9 GHz); 65W Intel® Core™ i3-7101TE (2 Cores, 3M Cache, to 3.4 GHz); 35W
6th Gen Intel® Core™/Pentium®/Celeron® LGA 1151 Processors TDP up to 95W: Intel® Core™ i7-6700K (Cores, 8M Cache, up to 4.2 GHz); 91W (Non-LTS) Intel® Core™ i7-6700 (4 Cores, 8M Cache, up to 4.0 GHz); 65W Intel® Core™ i7-6700TE (4 Cores, 8M Cache, up to 3.4 GHz); 35W Intel® Core™ i5-6500 (4 Cores, 6M Cache, up to 3.6 GHz); 65W Intel® Core™ i5-6500TE (4 Cores, 6M Cache, up to 3.3 GHz); 35W Intel® Core™ i3-6101E (2 Cores, 4M Cache, 3.7 GHz); 65W Intel® Core™ i3-6101TE (2 Cores, 4M Cache, to 2.7 GHz); 35W Intel® Pentium® G4400 (2 Cores, 3M Cache, 3.3 GHz); 65W Intel® Pentium® G400TE (2 Cores, 3M Cache, 2.9 GHz); 35W Intel® Celeron® G3900 (2 Cores, 2M Cache, 2.8 GHz); 65W Intel® Celeron® G3900TE (2 Cores, 2M Cache, 2.6 GHz); 35W |
| CHIPSET | Intel® Q170 Chipset |
| MEMORY | Four 288-pin Non-ECC DIMM up to 64GB
Dual Channel DDR4 2133/2400MHz |
| BIOS | Insyde SPI 128Mbit |
| STORAGE | 1x external 5.25” & 2x internal 3.5” drive bays
Supports 5 x SATA 3.0 & RAID 0/1/5/10 Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3) 2 x PCIe x4 (Gen 3)1 x M.2 2260/2280 M key (SATA3.0/PCIe Gen3 x2 NVMe |
| POWER SUPPLY | 400w SFX Industrial 100,000 MTBF power supply |
| AUDIO | Realtek ALC888S-VD2-GR |
| ETHERNET | 3 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) |
| OPERATING SYSTEMS SUPPORTED | Windows 7 32/64-bit
Windows 8.1 64-bit Windows 10 64-bit Linux Note: 7th Gen CPU SKU only supports Windows 10 64-bit & Linux |
| DISPLAY | 1 x VGA: resolution up to 1920×1200 @ 60Hz 1 x DVI-I (DVI-D signal): resolution up to 1920×1200 @ 60Hz 1 x DP++ : resolution up to 4096×2106 @ 60Hz |
| MULTI-DISPLAY OUTPUTS | Supports Triple Displays: VGA + DVI-D + DP++ |

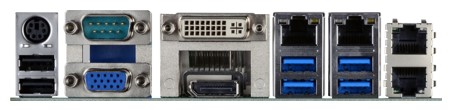

| REAR I/O PORTS | 4 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.0 & 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA, 1 x DVI-I (DVI-D signal), 1 x DP++ |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 (RS-232 w/power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch) 2 x USB 3.0 (2.00mm pitch) 4 x USB 2.0 (2.54mm pitch) or 2 x USB2.0 (2.54mm pitch) +1 x Vertical USB 2.0 (opt. MOQ required) |
| FRONT CHASSSIS CONNECTORS | 2 x USB ports on front panel |
| CHASSIS CONSTRUCTION | Heavy-duty Steel
3mm aluminium front panel |
| DRIVE BAYS | 1x external 5.25” & 2x internal 3.5” drive bays |
| SWITCHES | Power On/Off |
| INDICATORS | Power On/Off & HDD activity |
| MOTHERBOARD MTBF | 503,212 hrs @ 25°C; 281,329 hrs @ 45°C ; 175,239 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operating: 0 to 60°C Storage: -30 to 60°C with RTC battery; -40 to 85°C without RTC battery |
| COOLING | 8cm ball-bearing fan |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 337 x 339.8 x 136 mm (13.26 x 13.4 x 5.36 inches) |
