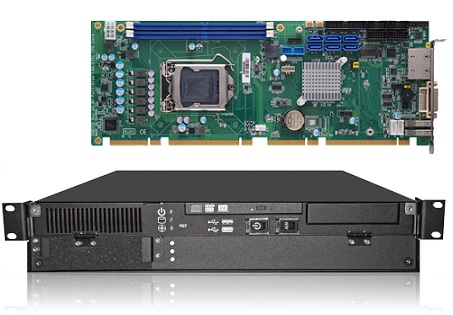

ICOM1190 1U Rackmount Computer
- 1U Industrial rackmount system
- 17.21” Depth
- 2 PCIe expansion slots
- Supports Intel® 8th/9th Gen processors
-
Intel® Xeon® & Core™ CPUs
- Intel® C246 Chipset, RAID 0/1/5
- 2 DDR4 ECC DIMMs up to 64GB
- 3 Display outputs: 1 DVI-I Standard
- I/O: 2 LAN, 2 USB 3.1, 1 DVI-I
- Windows 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q1 2032
Specifications
| PROCESSOR | LGA1151 socket 8th/9th gen Intel® Core™ processor, TDP up to 65W |
| CHIPSET | Intel® C246 Chipset |
| MEMORY | 2 x 288-pin 2666/2400 with ECC un-buffered Long-DIMM
(Intel® Core™ i7/i5 only support non-ECC) up to 64GB |
| BIOS | AMI |
| STORAGE | Supports 1 x Slimline DVD
1 x 3.5” or 3 x 2.5” front accessible drives Supports RAID 0/1/5 |
| OPTICAL | Optional DVD drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 1U PICMG1.3 backplane supports:
1 x PCIe x16 or 1 x PCIe x4 expansion slot |
| POWER SUPPLY OPTIONS | 1U Redundant
1U Single / Flex ATX |
| AUDIO | HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with optional audio kit |
| ETHERNET | 1 x 10/100/1000 Mbps (Intel® i219-LM; AMT)
1 x 10/100/1000 Mbps (Intel® i211-AT) |
| SATA | 6 x SATA-600
Supports RAID 0/1/5 |
| TPM | TPM 2.0 module (optional) |
| HARDWARE MONITORING | Detects CPU/system temperature, voltage and fan speed |
| BIOS OPTIONS | PICMG1.3 SBC with PCIE x 1 configured BIOS
PICMG1.3 SBC with PCIE x 4 configured BIOS |
| OPERATING SYSTEMS SUPPORTED | Windows 10 64-bit
Linux |
| DISPLAY | Intel® HD Graphics
Shares system memory 1 x DVI-I 1 x DisplayPort++ (internal header) |
| USB PORTS | 2 x USB 3.1 Gen2
4 x USB 3.1 Gen1 & 6 x USB 2.0 (2 ports on board, 4 ports on SHB connector-C golden fingers) |
| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x DVI-I 2 x USB 3.1 |
| OPTIONAL PORT EXPANSION FROM SBC | 2 x RS-232
2 x RS-232/422/485, mode selection by SW 4 x USB 3.1 Gen1 & 6 x USB 2.0 1 x PS/2 keyboard internal connector 1 x PS/2 mouse internal connector |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | Supports 1 x Slimline DVD
1 x 3.5” or 3 x 2.5” front accessible drives |
| ENVIRONMENT | Operating Temperature: 0°C to +60°C (+32°F to +140°F) dependent on specification
Humidity: 10% to 95% relative humidity, non-condensing |
| POWER REQUIREMENTS | Intel® Core™ i7-9700TE with 32GB DDR4-2666 x 2
+12V @ 2.8A, +5V @ 2.4A, +3.3V @ 1.3A |
| VIBRATION | 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration |
| COOLING | Two replaceable air filters / Two 4cm ball-bearing cooling fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 482 (W) x 437.35(D) x 44 (H); 19” (W) x 17.21 (D) x 1.75” (H) |
| OPTIONAL PARTS | 2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
2 x USB 3.1 (Gen1) cable with bracket, L=400 mm 2 x USB 3.1 (Gen2) cable with bracket, L=400 mm PS/2 keyboard & mouse cable with bracket HD audio converter kit 1 x COM port cable with bracket or 2 x COM port cable with bracket DVI-I to DVI-D+VGA Y cable TPM 2.0 module DisplayPort++ kit with bracket |
