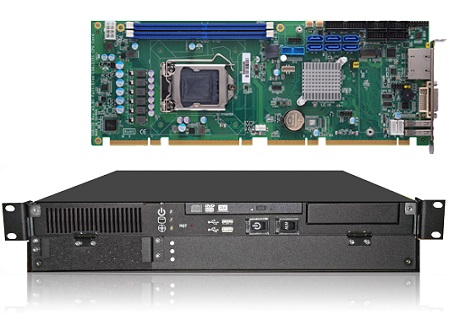

ICOM1189 1U Rackmount Computer

1U Industrial rackmount system
17.21” Depth
2 PCIe expansion slots
Supports Intel® 8th/9th Gen processors
Intel® Core™, Pentium®, Celeron® CPUs
Intel® Q370 Chipset, RAID 0/1/5
2 DDR4 DIMMs up to 64GB
3 Display outputs: 1 DVI-I Standard
I/O: 2 LAN, 2 USB 3.1, 1 DVI-I
Windows 10 Pro / IoT & Linux
CPU Life Cycle Support Until Q1 2032

Specifications

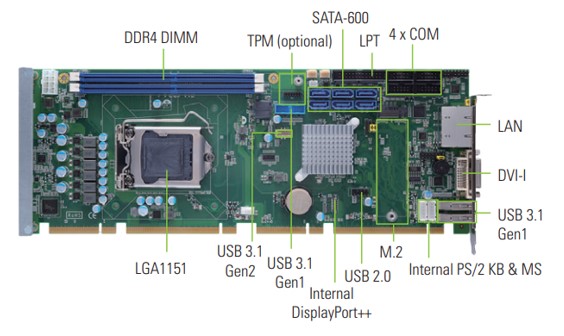

PROCESSOR	LGA1151 socket 8th/9th gen Intel® Core™ processor, TDP up to 65W
CHIPSET	Intel® Q370 Chipset
MEMORY	2 x 288-pin 2666/2400 un-buffered DIMM up to 64GB
BIOS	AMI
STORAGE	Supports 1 x Slimline DVD 1 x 3.5” or 3 x 2.5” front accessible drives Supports RAID 0/1/5
OPTICAL	Optional DVD drive
WATCHDOG TIMER	Programmable via S/W from 1 sec. to 255 sec.
EXPANSION SLOTS	1U PICMG1.3 backplane supports: 1 x PCIe x16 or 1 x PCIe x4 expansion slot
POWER SUPPLY OPTIONS	1U Redundant 1U Single / Flex ATX
AUDIO	HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with optional audio kit
ETHERNET	1 x 10/100/1000 Mbps (Intel® i219-LM; AMT) 1 x 10/100/1000 Mbps (Intel® i211-AT)
SATA	6 x SATA-600 Supports RAID 0/1/5
TPM	TPM 2.0 module (optional)
HARDWARE MONITORING	Detects CPU/system temperature, voltage and fan speed
BIOS OPTIONS	PICMG1.3 SBC with PCIE x 1 configured BIOS PICMG1.3 SBC with PCIE x 4 configured BIOS
OPERATING SYSTEMS SUPPORTED	Windows 10 64-bit Linux
DISPLAY	Intel® HD Graphics Shares system memory 1 x DVI-I 1 x DisplayPort++ (internal header)
USB PORTS	2 x USB 3.1 Gen2 4 x USB 3.1 Gen1 & 6 x USB 2.0 (2 ports on board, 4 ports on SHB connector-C golden fingers)
REAR I/O PORTS	2 x GbE (RJ-45) 1 x DVI-I 2 x USB 3.1
OPTIONAL PORT EXPANSION FROM SBC	2 x RS-232 2 x RS-232/422/485, mode selection by SW 4 x USB 3.1 Gen1 & 6 x USB 2.0 1 x PS/2 keyboard internal connector 1 x PS/2 mouse internal connector
FRONT CHASSSIS CONNECTORS	2 x USB
DRIVE BAYS	Supports 1 x Slimline DVD 1 x 3.5” or 3 x 2.5” front accessible drives
ENVIRONMENT	Operating Temperature: 0°C to +60°C (+32°F to +140°F) dependent on specification Humidity: 10% to 95% relative humidity, non-condensing
POWER REQUIREMENTS	Intel® Core™ i7-9700TE with 32GB DDR4-2666 x 2 +12V @ 2.8A, +5V @ 2.4A, +3.3V @ 1.3A
VIBRATION	5~7 Hz: 0.5” double amplitude displacement 7~2000 Hz: 1.5g acceleration
COOLING	Two replaceable air filters / Two 4cm ball-bearing cooling fans
COLOUR	Black (all other optional colours are available upon request)
DIMENSIONS:	482 (W) x 437.35(D) x 44 (H); 19” (W) x 17.21 (D) x 1.75” (H)
OPTIONAL PARTS	2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm 2 x USB 3.1 (Gen1) cable with bracket, L=400 mm 2 x USB 3.1 (Gen2) cable with bracket, L=400 mm PS/2 keyboard & mouse cable with bracket HD audio converter kit 1 x COM port cable with bracket or 2 x COM port cable with bracket DVI-I to DVI-D+VGA Y cable TPM 2.0 module DisplayPort++ kit with bracket
