Juniper Mesa 3 Android 11
- Android 11.0
- Waterproof, dustproof, shockproof
- Extreme temperature endurance
- Ergonomic design
- All-day battery life
- Large 7’’ sunlight-readable display
Description
With best-in-class features including an ultra-rugged ergonomic design, sunlight-readable display, and all-day battery life, Mesa™ Rugged Tablets provide the ultimate device for a variety of mobile data collection applications.
Specifications
| DIMENSIONS | 5.40″ W x 8.48″ L x 1.36″ D (137 x 215 x 35 mm) |
| DISPLAY | 7.0″ 1280 x 800 resolution screen |
| TOUCH PANEL | 10-point Multi Touch Capacitive |
| SCREEN PROTECTION | Optically bonded for increased visibility and strength |
| SCANNER | Optional built-in barcode imager and decoder |
| WEIGHT | : 1.5–2 lbs (680–907 g) depending on battery and expansion configuration |
| IP RATING | IP68 Sealing (water and dust) |
| DROP / SHOCK PROTECTION | MIL-STD 810G, 1.2m drop |
| OPERATING TEMPERATURE | -20°C ~ 50°C |
| STORAGE TEMPERATURE | -30°C ~ 70°C |
| HUMIDITY | Humidity; Method 510.5 |
| PROCESSOR | Quad-core Intel® Pentium N4200 |
| SYSTEM MEMORY | 8 GB LPDDR4 |
| STORAGE | 128 or 256 GB Flash Storage |
| OPERATING SYSTEM | Android 11 |
| I/O PORTS | 12V DC power input jack
USB 3.0 x 1 & 3.5 mm audio jack Optional RS-232 9-Pin D-Sub connector with 5V DC or 12V DC power output Docking connector (Power, USB 2.0, HDMI, & Ethernet) Loud output speaker for noisy environments Dual digital microphone input |
| BATTERY | Removable Li-Ion battery, 43.2 Whr
Operates 8–10 hours on one charge |
| CAMERA (GEO MODELS) | Rear: 16 MP with LED illumination, Front: 2 MP |
| APPROVALS | FCC Class B
CE Marking (applicable EMC, R&TTE, and LVD directives) Optional Class I, II, & III, Division 2, Groups A, B, C, D, F, G |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz |
| BLUETOOTH | Long-range Bluetooth® Smart Ready |
| 4G LTE | 4G LTE multi-carrier capable |
| SYSTEM INCLUDES | Main unit with orange corner bumpers
Removable Lithium-Ion Battery AC Wall Charger with International Plug kit Adjustable Hand Strap Capacitive Fine Tip Stylus w/ Tether Quick Start Guide BT v5.0 +EDR, BLE Support / Wi-Fi 802.11 a/b/g/n/ac 2.4GHz & 5 GHz Integrated GNSS receiver & antenna 4G LTE multi-carrier capable |
| PART NUMBERS | MS3-CFG-13191: Mesa 3 GEO EU/CE – 64GB storage, 6GB memory, front & rear cameras, GNSS receiver and antenna, 4G LTE modem
MS3-CFG-13253: Mesa 3 GEO/Cell EU/CE – as per above but also includes integrated 1D/2D barcode scanner |

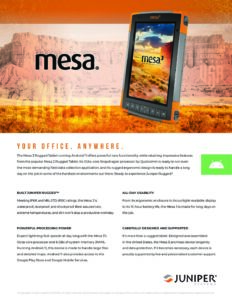

Downloads
