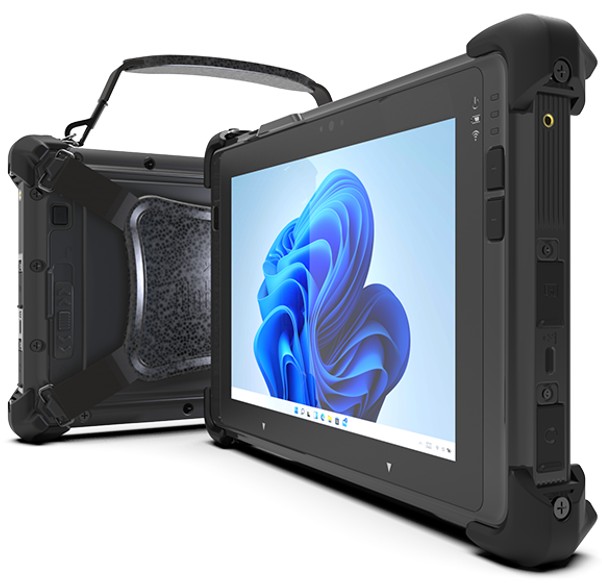

TBL8655 Rugged Tablet
- Windows 11 Pro operating system
- 8.0” 1920 x 1200 display
- 3-year warranty as standard
- 8340mAH battery, USB-C charging
- Intel® Quad Core N100 processor
- MIL-STD-810G drop/shock tested
- 8GB memory & 256B storage
- IP65 sealed for water & dust protection
Specifications
| DIMENSIONS | 9.2 in (W) x 5.87 in (H) x .87 in (D)
233.6 mm (W) x 149 (H) x 22 (D) |
| DISPLAY | 8 in – 1200 (H) x 1920 (W) IPS
650 nits 10 point capacitive multi-touch |
| CPU | Intel® Alder Lake-N N100 |
| MEMORY | LPDDR5 8GB or 16GB (on board) |
| STORAGE | PCIe SSD 256GB standard, options for 512GB or 1TB |
| OPERATING SYSTEM | Windows 11 Pro
Windows 11 IoT Enterprise LTSC |
| ENVIRONMENTAL | Operating Humidity 10% to 95% RH, noncondensing
Operating Temperature 10°C to 50°C Storage Temperature 20°C to 60°C Shock MILSTD810G 5 foot drop Steel ball drop tested 250gm from 50cm with screen protector IP rating IP65 |
| CAMERA | Front – 2MP
Rear – 8MP AF with flash |
| AUDIO | N/A |
| I/O PORTS | USB 3.2 Gen2 Type A (1)
USB 3.2 Gen2 Type C (1) Alt Mode USB 3.2 Gen2 Type C (1) Alt Mode, 20V PD-IN Card Reader Micro (1) Headphone 3.5mm (1) Internal D-MIC (2) Giga LAN Port (1) 19 Pin Pogo (1) Internal USB (1) Internal USB Power only (1) |
| SENSORS | Accelerometer Support
Gyroscope Support E-Compass Support |
| BATTERY | 7.68V, 8340mAH, 64W
Battery life (TBD) Backup battery 7.4V, 142MAH, 1W |
| WIRELESS/NETWORK | WLAN Intel® Killer™ Wi-Fi 6E AX1675
(a/b/g/n/AC) Bluetooth 5.3 GPS TBD |
| SECURITY | Trusted Platform Module (TPM) 2.0 |
| WARRANTY | 3-year warranty that covers hardware failure when the tablet has
been used as designed |
| APPROVALS | CE, WEEE, RoHS |
| OPTIONS | Barcode Imager
RFID/NFC MSR (in development) |
| OPTIONAL ACCESSORIES | Vehicle Dock
Office Dock Direct Wiring Multiple Battery Charger |
| OPTIONAL MOUNTING BRACKETS | Clamp, Wall, Counter, Drill Down, Magnetic, VESA, Snap, Vehicle |
