MILTECH 9116 – MILITARY MANAGED 12 X 10G COPPER PORTS WITH 10G FIBER OPTIC PORTS SWITCH/ROUTER
The MILTECH 9116’s is widely used in battlefield communications C4ISR, video, sensor data acquisition, and transmission.
Specifications
| Product Model | MILTECH 9116 |
| Management | Managed |
| Ports | 12 x 10G copper ports + 4 x 10G fiber ports |
| IMMERSION | IP67 |
| DIMS | 426 mm x 204 mm x 70 mm |
| Connector | Power : MIL-D-38999, LAN : D38999, Fiber: TacBeam |
| Weight | 4 Kg |
| Operating Temp | -45°C to +75°C |
| MIL-STD | MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B, MIL-STD-704A |
| Power | 24Vdc Nominal (18-32V), 87W |
Please download datasheet below for full product information
Downloads
Similar products
-

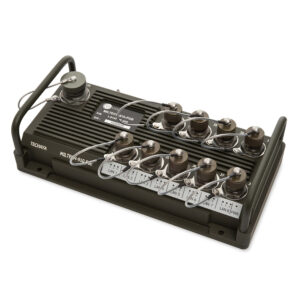

MILTECH 910-PoE – RUGGED MANAGED POE+ GIGABIT ETHERNET SWITCH – 8 PORT
