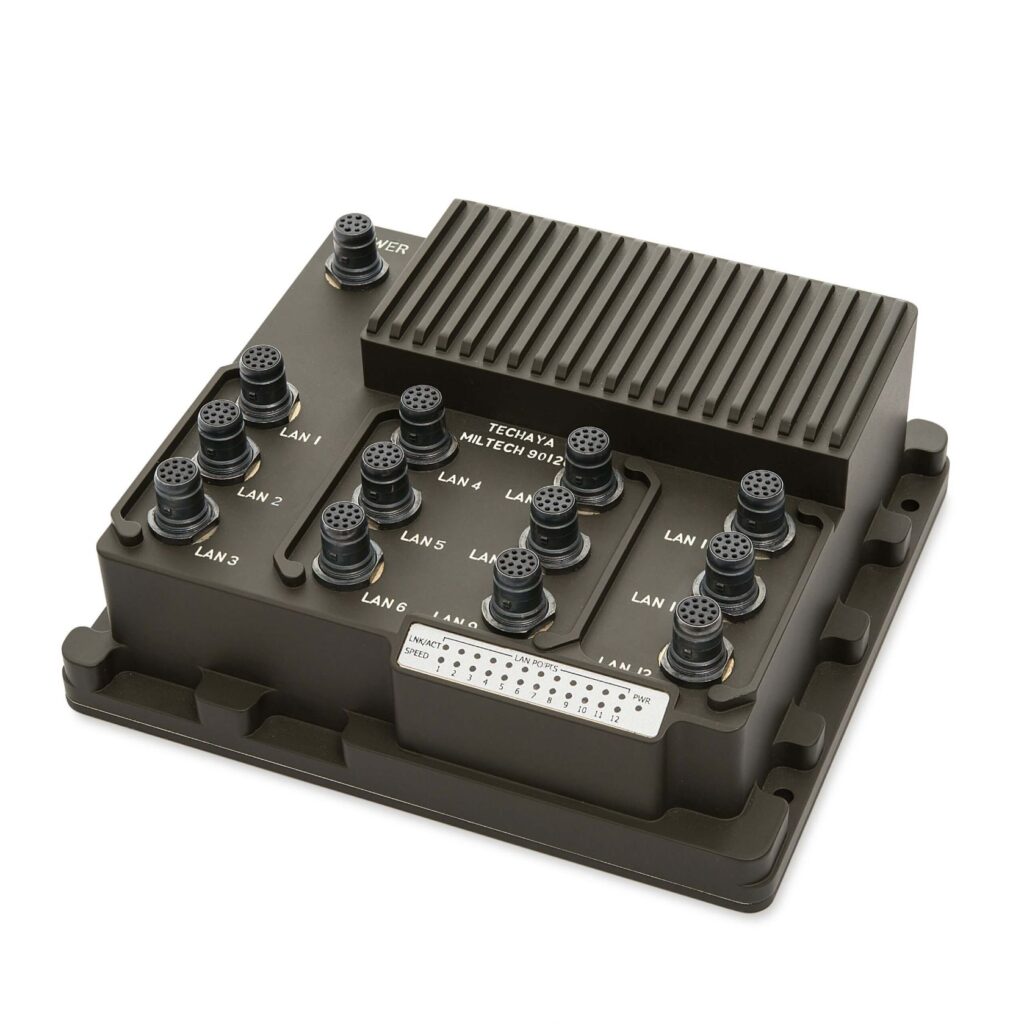

MILTECH 9012C – COMPACT MILITARY-GRADE MANAGED 12-PORT GIGABIT ETHERNET ROUTER/SWITCH WITH CISCO® IOS®
The MILTECH 9012C’s switch portion features both L2/L3 network switching and routing capabilities, including virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 support, and bandwidth aggregation.
Description
SWaP-Optimised Routing for Mission-Critical Environments
The Miltech 9012C is a compact, military-grade, fully managed 12-port Gigabit Ethernet router and switch designed for tactical deployments where Size, Weight, and Power (SWaP) constraints are critical. Weighing just over 1kg and enclosed in an ultra-rugged housing, this unified solution combines a high-density L2/L3 switch with an integrated enterprise-class router. It is the definitive networking platform for mobile ad-hoc networks (MANETs), ground vehicles, UAVs, and battlefield command systems.
Enterprise-Grade Security with Integrated Cisco IOS-XE
Equipped with Cisco’s industry-standard IOS-XE operating system, the Miltech 9012C seamlessly extends secure enterprise networking to the edge of the battlefield. Network administrators can deploy familiar security protocols without retraining or software compatibility friction.
Advanced Cyber Security
Benefit from cutting-edge threat defence featuring IPsec VPNs, IKEv2, Cisco IOS Firewall, and Zone-Based Firewalls.
Unified Network Management
Simplify your topology by eliminating the need for a separate on-board edge router, reducing hardware footprint whilst maintaining full command-and-control capabilities.
Fully Certified to Combat-Ready Military Standards
Engineered to withstand the most punishing tactical environments on earth, the Miltech 9012C features an IP67-rated, passively cooled aluminium enclosure. It relies on circular MIL-DTL-38999 connectors to guarantee reliable data transmission under severe mechanical stress.
MIL-STD-810F/G
Validated for extreme temperatures, high altitude, thermal shock, sand, dust, and continuous explosive shock and vibration.
MIL-STD-461E/F
Certified for strict electromagnetic compatibility (EMI/RFI) to prevent interference with sensitive on-board communications.
MIL-STD-1275B/704A
Equipped with advanced power management protection against heavy voltage surges, spikes, and ripples common in military land vehicles and aircraft.
Target Applications and Deployments
Unmanned Systems (UAVs & UGVs)
Ultra-lightweight and compact footprint ensures maximum flight time and payload capacity without sacrificing routing performance.
Tactical Land Vehicles
24VDC vehicle power compatibility ensures seamless integration into mobile command posts, armoured personnel carriers, and reconnaissance vehicles.
C4ISR Mobile Command Systems
Deliver high-speed internal L2/L3 LAN switching whilst simultaneously providing highly secure, encrypted WAN routing back to headquarters.
Specifications
| Product Model | MILTECH 9012C |
| Management | Managed |
| Ports | 12 x 10/100/1000 (L2/L3 on 9012) + 2 x 10/100/1000 (on ESR) |
| IMMERSION | IP68 |
| DIMS | 166 mm x 144 mm x 68 mm |
| Connector | Power + LAN : SCE2 |
| Weight | 1.1 Kg |
| Operating Temp | -45°C to +85°C |
| MIL-STD | MIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A |
| Power | 18-72VDC, 25W (Typical) |
Please download datasheet below for full product information
