ICOM4526 4U Rackmount Computer
- 4U Industrial rackmount system
- 11.82″ Short Depth
- Supports Intel® Xeon® 6300 Series & E-2400 processors
- 3 PCIe expansion slots
- 2 x 10GbE & 2 x GbE LAN ports
- Intel® C266 Chipset with RAID support
- 4 DIMM DDR4 ECC up to 64GB
- 1 x DisplayPort with ASPEED 2600 graphic adapter

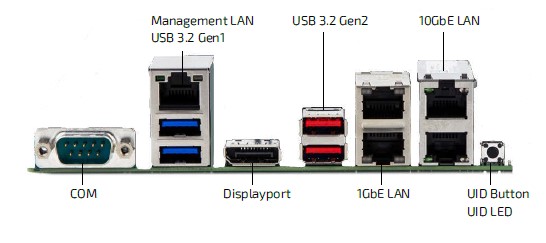

- I/O: 4 LAN, 4 USB 3.2, Management LAN & 1 RS232
- Extended Lifecycle Series
Specifications
| PROCESSORS | Intel® XEON® 6300 series Processors
Intel® XEON® E-2400 series Processors Pentium® Gold G7400T / G7400 processors |
| CHIPSET | Intel® C266 Chipset |
| MEMORY | DDR5 5600 SDRAM
4x UDIMM, up to 128GB, ECC |
| BIOS | AMI Aptio 5.x (UEFI) BIOS modified and adapted by Kontron; Recovery BIOS,
SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCIe Configuration, BIOS Support for S.M.A.R.T., No legacy OS support, no MBR installation (UEFI only) |
| STORAGE | 4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, VROC
4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, VROC or 1x 4x PCIe Gen 4 1x M.2 2230/2280/22110 (Key-M ,PCIe x4 Gen4/NVMe SSD modules) 1x M.2 2280/22110 (Key-M ,PCIe x4 Gen4/NVMe SSD modules) |
| OPTICAL | Optional DVD drive |
| WATCHDOG TIMER | BMC Hardware Watchdog |
| EXPANSION SLOTS | 1x PCIe x16 Gen5 PEG, bifurcation support
1x PCIe x1 Gen 4 (open slot) 1x PCIe x4 Gen 4 (mechanical x16) |
| POWER SUPPLY OPTIONS | PS2 AC/DC or Redundant power supply options |
| POWER SUPPLY REQUIREMENTS | Source: Main Power supply
Voltage/MIN PS Load/Max. Voltage Tolerance/Motherboard Capacitive Load/Max. Current + 12 V 0 A ± 5 % TBD TBD – 12 V n/a n/a TBD TBD + 5 V 0 A ± 5 % TBD TBD + 3.3 V 0 A ± 5 % TBD TBD |
| DISPLAY | ASPEED 2600 Video Graphic Adapter
1x Display port 1.1a |
| NETWORK CONNECTIONS | Ethernet 1: Intel® I210AT with 10/100/1000 MBit/s, shared LAN port with BMC
Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support
Ethernet 2: Intel® I210AT with 10/100/1000 MBit/s, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support
Ethernet 3/4: Intel® E610-XAT2 dual 10GbE, shared LAN port with BMC, PXE Support, BIOS MAC Address Display, Teaming Support Realtek RLT8211F for System Management (BMC LAN) |
| USB | 2x USB 3.2 Gen1, 2x USB 3.2 Gen2
Internal USB3.2 Gen 1 header (2ports) Internal USB3.2 Gen 1 Stick socket |
| SERIAL PORT/GPIO/TPM/OTHERS | 1x RS232 (rear I/O, DB9 connector)
8 Bit GPIO (Input/Output); 3.3 V/5 V/12 V supply voltage output; SMBus controller PCA9554A 2x SMBus connector; SMBus on Front Panel Connector 1x PMBus Connector 1x SGPIO 1x Nano SIM Card TPM Module Header for Infineon TPM |
| SYSTEM CONTROL | 1x Header for Reset button, HDD LED, Power button, Power LED,
Unit ID switch and LED, Fault LED, LAN activity, SMBus Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial-/ USB-Port Access Protection, Write Protection for Flash BIOS, EraseDisk (BIOS Feature), |
| OPERATING SYSTEMS SUPPORTED | Windows Server 2022, Windows Server 2025, Linux-64
No legacy OS support, no MBR installation (UEFI only) |
| CHASSIS DIMENSIONS | (W x D x H) 482.6 x 300 x 177 |
| DRIVE BAYS | 2 x 5.25” & 1 x 3.5” (supports 2 x 2.5” drives) |
| COOLING | 3 x front mounted fans. Option to add 2 x rear fans |
| COLOUR | Black (other colours available upon request) |
| SECURITY | Lockable front door |
| ENVIRONMENTAL | Operating Temperature 0° to 60° |

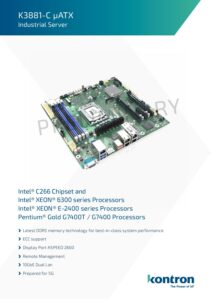

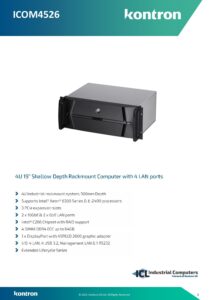

Downloads
