ICOM276 2U Rackmount Computer

Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W

Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W

Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W

Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W

Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W

Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W

Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W

Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W

Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W

Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W

9th Generation Intel® Core™ LGA 1151 Socket Processors:

Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W

Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W

Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W

Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W

Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W

Supports 1 x Slimline DVD

Supports RAID 0/1

5 x SATA 3.0 ports (Dual ports via Backplane)

1 x M.2 Type M 2280 (On bottom side)

Option 1: 5-slot [PCIe x16 (1), PCIe x4 (1), PCI (3)]

Option 2: 5-slot [PCIe x16 (1) PCIe x1 (4)]

DC 12~48V

Redundant Power Supplies

1 x Intel® WGI210AT Gigabit Ethernet controller

Windows 10 IoT Enterprise 64-bit

Linux

VGA on bracket, resolution up to 1920×1200 @ 60Hz

DVI-D on bracket, resolution up to 1920×1200 @ 60Hz

(VGA + DVI-D on bracket by DVI-I port)

HDMI on board, up to 4096×2160 @ 24Hz

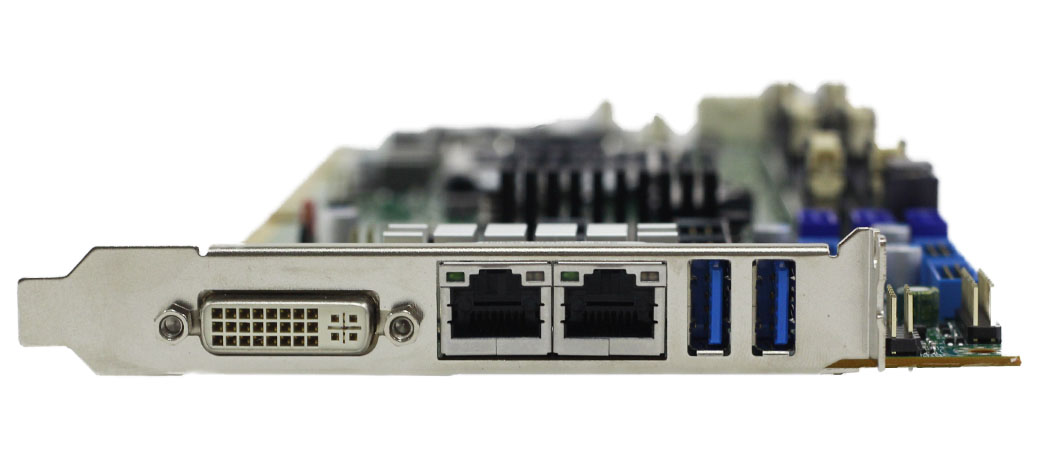

2 x LAN

1 x DVI-I (DVI-D + VGA)

8 x USB 3.2 Gen 1 on board, 5Gbps bus capable of high/full/low-speed data ranges

2 x RS232 ports

2 x RS232/422/485 selectable

Storage temperature: -20°C to 80°C

Relative humidity: 5~90%, non-condensing

(Dependant of overall system specifications)

Two 7cm ball-bearing cooling fans
