ICOM1207 – 1U Short Depth Rackmount Computer
- 1U Industrial rackmount system
- 15” Short Depth
- 1 PCIe or PCI expansion slot
- Supports Intel® 10th Gen processors
- Intel® Core™, Pentium®, Celeron® CPUs
- Intel® H420E Chipset
- 2 DDR4 DIMMs up to 64GB
- 2 Display outputs: VGA, HDMI & DP++
- I/O: 2 LAN, 3 COM, 4 USB 3.2, 2 USB 2.0
- CPU Life Cycle Support Until Q2 2034
Description
1U 10th Gen Short Depth Rackmount Computer
Specifications
| PROCESSOR | 10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W |
| CHIPSET | Intel® H420E Chipset |
| MEMORY | Two 288-pin Non-ECC UDIMM up to 64GB
Dual Channel DDR4 2400/2666/2933MHz |
| BIOS | Insyde SPI 256Mbit |
| STORAGE | Supports 1 x 3.5” and 2 x 2.5” drive bays
Motherboard supports: 4 x SATA 3.0 (up to 6Gb/s) |
| OPTICAL | Optional DVD drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | Option 1: 1 x PCIe x16 (Gen 3)
Option 2: 1 x PCIe x4 (Gen 2) Option 3: 1 x PCI |
| POWER SUPPLY OPTIONS | 1U Single / Flex ATX AC or DC options |
| AUDIO | Realtek ALC888 |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) |
| OPERATING SYSTEMS SUPPORTED | Windows 10 IoT Enterprise 64-bit
Linux |
| DISPLAY | 1 x VGA : VGA: resolution up to 1920×1200 @ 60Hz
1 x DP++ : DP++: resolution up to 4096×2160 @ 60Hz 1 x HDMI 1.4b : resolution up to 4096×2160 @ 24Hz |
| MULTI-DISPLAY OUTPUTS | Supports Dual Display outputs: VGA + DP++ / VGA + HDMI / DP++ + HDMI |

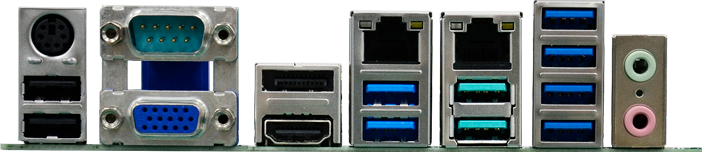

| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/ power) (DB-9) 4 x USB 3.2 Gen1 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA, 1 x DP++, 1 x HDMI 1 x Line-out 1 x Mic-in |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 2 x RS-232
4 x USB 2.0 |
| FRONT CHASSSIS CONNECTORS | 2 x USB 3.0 |
| DRIVE BAYS | 1 x Slimline 5.25” drive bay
1 x 3.5” drive bay 2 x 2.5” drive bays |
| ENVIRONMENT | Operating: 0 to 60°C
Storage: -40 to 85°C without RTC Battery; -30 to 60°C with RTC Battery Operating: 5 to 90% RH Storage: 5 to 90% RH |
| VIBRATION | 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration |
| MOTHERBOARD MTBF | 504,168 hrs @ 25°C ; 278,849 hrs @ 45°C ; 172,277 hrs @ 60°C ; 146,454 hrs @ 65°C
Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| COOLING | Up to 3 x 40mm fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 482.6 (W) x 381 (D) x 44.4 (H); 19” (W) x 15” (D) x 1.75” (H) |
