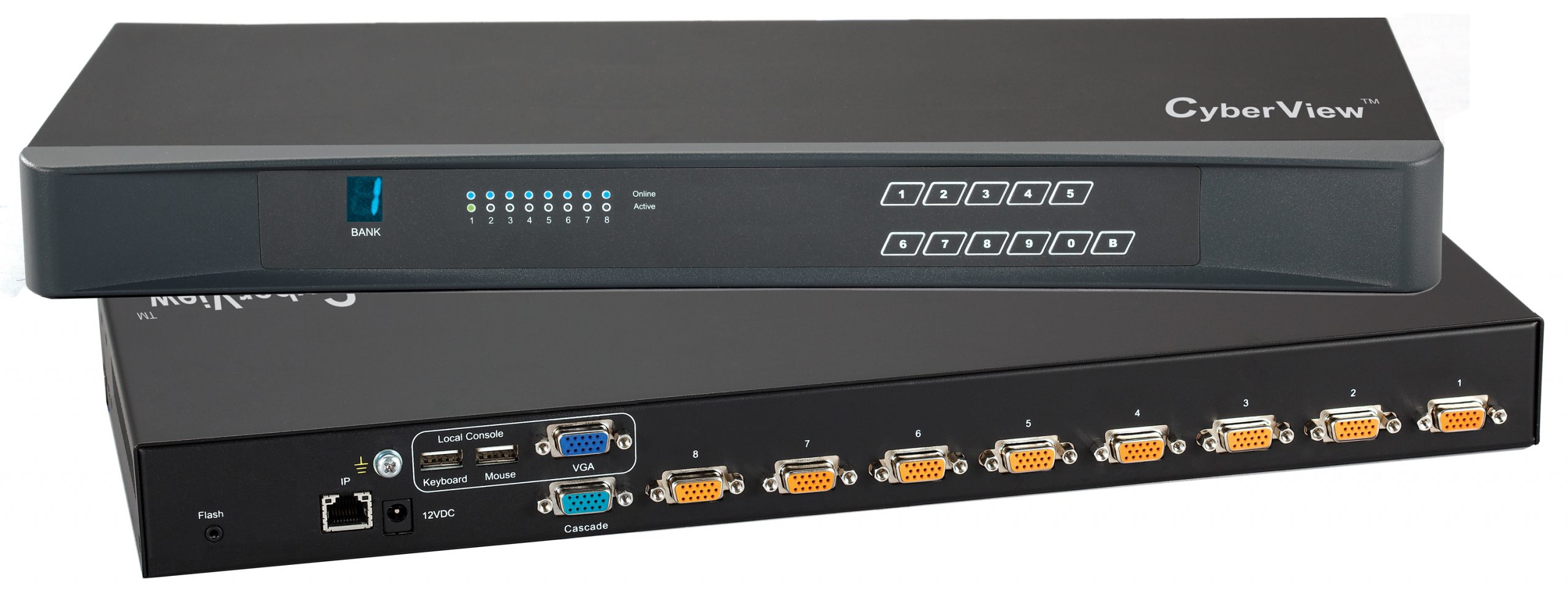

U-IP802 – 8 Port Combo Cat6 KVM Switch – 1 Local + 1 IP Users
- Cat6 KVM with 8 ports in 1U
- Access sources from 2 consoles (1 Local, 1 IP)
- Cat6 dongle available for DP, HDMI, DVI-D or VGA video input
- Local console & KVM ports support resolution up to 1920 x 1080
- Multi-platform for PC, server, Blade Server & SUN / MAC
- Port switching via OSD, front button & keyboard hotkeys
- Multi lingual OSD menu
- Hot pluggable, no software or drivers required
- Cascade levels up to 8 KVM switches
Specifications
| Form Factor | 1U Rackmount, Desktop, KVM module for LCD Console Drawer | ||||||
|---|---|---|---|---|---|---|---|
| KVM Switch Ports | 8 Port | ||||||
| Local Users | 1 Local User | ||||||
| Extended Remote Users | 0 Extended Users | ||||||
| Global IP Users | 1 IP Users | ||||||
| Port Connector | Cat6 | ||||||
| Video Connections | HDMI, DisplayPort, DVI-D, VGA | ||||||
| KVM Port Resolution |
|
||||||
| Local Console Resolution |
|
||||||
| IP Console Resolution |
|
||||||
| Keyboard & Mouse Connection | USB, PS/2 | ||||||
| Cascade | 8 Levels | ||||||
| Single / Dual Feed Power | Single Feed, Dual Feed | ||||||
| Compliance | UL, CE, FCC, REACH, RoHS3 | ||||||
| Dimensions | 171 × 443 × 44 mm ( 17.44 x 6.73 x 1.73 in ) |
Please download datasheet below for full product information
