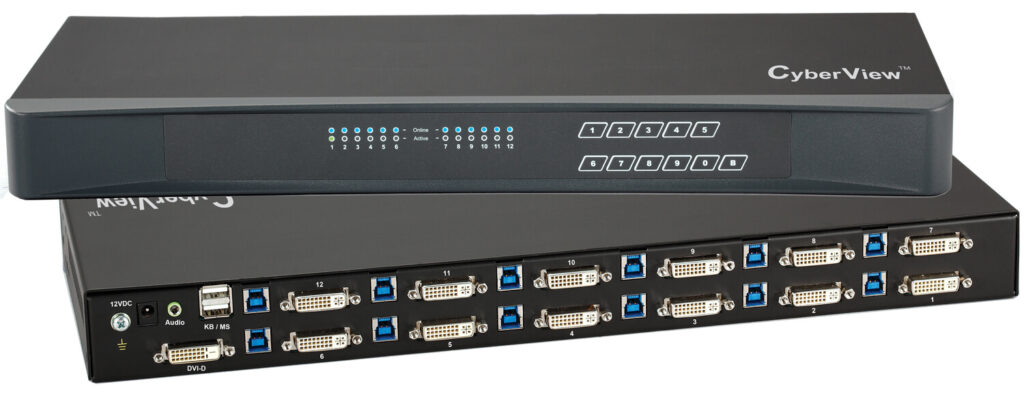

CV-1201 DVI-D KVM
- DVI-D KVM with 12 ports in 1U
- Local console & KVM ports support resolution up to 1920 x 1200
- Multi-platform for PC, server, Blade Server & SUN / MAC
- Port switching via front button & keyboard hotkeys
- Hot pluggable, no software or drivers required
Specifications
| Form Factor | 1U Rackmount, Desktop, KVM module for LCD Console Drawer | ||||||
|---|---|---|---|---|---|---|---|
| KVM Switch Ports | 12 Port | ||||||
| Local Users | 1 Local User | ||||||
| Extended Remote Users | 0 Extended Users | ||||||
| Global IP Users | 0 IP Users | ||||||
| Port Connector | DVI + USB | ||||||
| Video Connections | DVI-D | ||||||
| KVM Port Resolution |
|
||||||
| Local Console Resolution |
|
||||||
| Keyboard & Mouse Connection | USB | ||||||
| Audio Connection | Analog | ||||||
| Single / Dual Feed Power | Single Feed | ||||||
| Compliance | CE, FCC, REACH, RoHS3 | ||||||
| Dimensions | 171 × 443 × 44 mm ( 17.44 x 6.73 x 1.73 in ) |
CyberView CV-1201D DVI-D KVM – YouTube
Please download datasheet below for full product information
