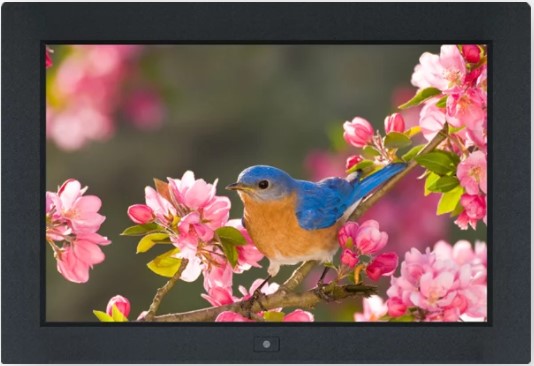

X24 – Professional and Versatile 24″ WUXGA LED Monitor
- 1920 x 1200 WUXGA native resolution
- 16.7 M colours
- HDMI 1.3 + DVI-D + S-Video + BNC + VGA for X24″
- HDMI 1.4 + DVI-D + VGA for X17″
- PIP Sub-screen & PBP Dual-screen viewing efficiency
- Video decoding capability up to 1080p ( option )
- Rugged structure ensures high mobility
- IP65 front protection ( NAP series )
- Professional-use durability & around-the-clock operation
- 2-year standard warranty ( upgradable up to 5 years )
Description
The UltraView WUXGA: A Professional LED Monitor Redefined
The UltraView WUXGA Professional LED monitor transcends the typical standalone display, evolving into a versatile, modular solution tailored for demanding environments. Offering both 24-inch and 17-inch models, this monitor boasts a crisp 1920×1200 WUXGA native resolution, delivering vibrant visuals with 16.7 million colors. Beyond its exceptional image quality, the UltraView WUXGA integrates embedded modules that empower users with advanced video remote management and transmission capabilities across networks. This includes a Multi-Monitor OSD Controller and SDI Input, enabling seamless control and distribution of video signals across multiple displays.
Designed for professional applications, the UltraView WUXGA is engineered to withstand harsh conditions. Its IP54 front protection (with an optional IP65 upgrade on the NAP series) shields against dust and splashes, ensuring reliable operation in challenging environments. The monitor’s versatility extends to its mounting options, supporting VESA-mount, Universal-mount, Desktop stand, and Panel-mount configurations. Furthermore, customization is a core strength, with options for touchscreen functionality (e-Resistive 1-point Touch), anti-reflective/vandal-proof glass, DC power input, and auto-dimming features.
Austin Hughes, leveraging over 25 years of production expertise, meticulously manufactures the UltraView WUXGA at their own CNC facilities. This ensures a rugged, mobile, and high-quality product suitable for around-the-clock operation. The monitor’s chassis can be customized to meet specific installation requirements, with engineers offering bespoke frame dimensions, colors, metal treatments, screen printing, bezels, and mounting solutions. This level of customization caters to diverse applications, from broadcasting and advertising to traffic control, healthcare, infotainment, surveillance, and even vehicle-mounted displays.
Key benefits of the UltraView WUXGA include its robust construction, professional-grade durability, and comprehensive feature set. The monitor supports various video inputs, including HDMI, DVI-D, S-Video, BNC, and VGA, with video decoding capability up to 1080p (optional). Features like Picture-in-Picture (PIP) and Picture-by-Picture (PBP) enhance viewing efficiency, while optional modules for 3G/HD/SD-SDI input and network-based video management further expand its capabilities. Embedded auto-dimming and manual dimming options ensure optimal viewing in any lighting condition. The monitor’s fan-less architecture and improved energy efficiency contribute to its reliability and longevity. Backed by a 2-year standard warranty, upgradable to 5 years, the UltraView WUXGA is a testament to Austin Hughes’ commitment to quality and innovation, providing a versatile and reliable display solution for a wide range of professional applications.
Specifications
Options
DC power
Touchscreen
IP65 front protection
Custom chassis & mounting
Auto-dimming
3G / HD / SD-SDI Input Module
UltraView X24″/ X17″ WUXGA 1920 x 1200 Professional LCD – YouTube
Please download datasheet below for full product information
Downloads
