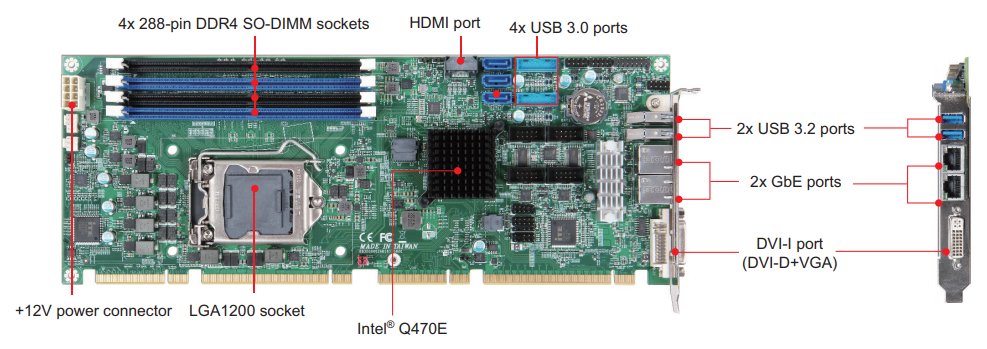

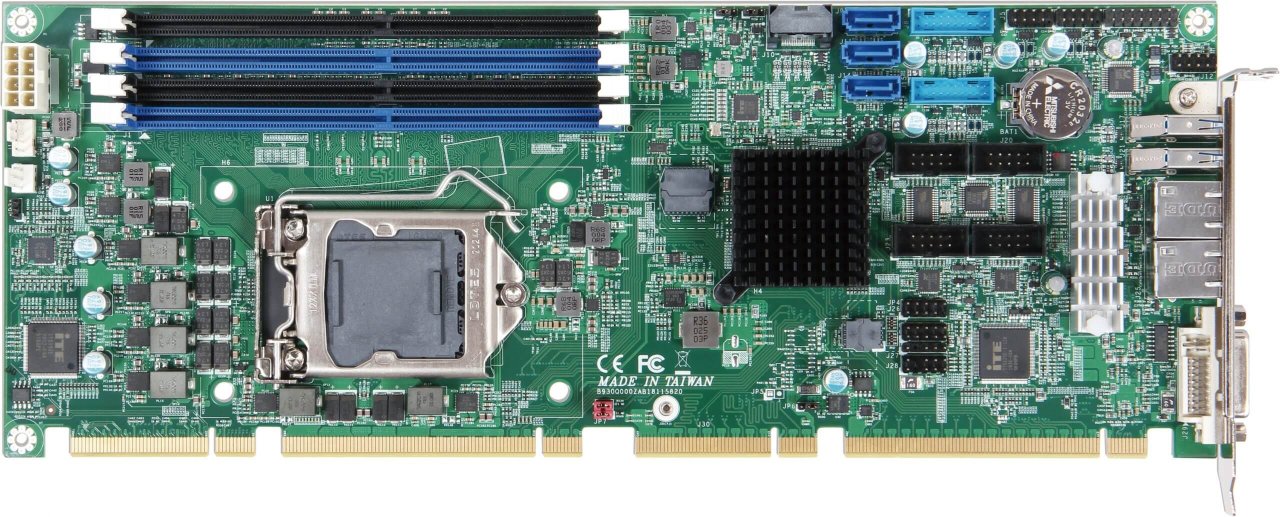

SBC-4230-Q470E – Single Board Computer
- Intel® 10th Gen i3/i5/i7/i9
- Intel® Q470E chipset
- Supports RAID 0/1/5/10
- 4 DDR4 DIMMs up to 128GB
- Multiple display output options
- High speed dual Gigabit Ethernet
- On-board five SATAIII ports
- Rich I/O: Four COM ports, USB 3.2
- Windows 10 supported
- 14-Year Life Cycle Support Until Q2 ’35
Description
SBC-4230-Q470E – Single Board Computer
In demanding industrial environments, this computer provides unwavering reliability for manufacturing and automation. Engineered for resilience, it offers a stark contrast to consumer-grade electronics, serving as the central hub for critical computing functions.
Unmatched Processing Flexibility
This SBC-4230-Q470E supports a wide range of Intel® processors, including Core™ i3, i5, i7, i9, Pentium®, and Celeron®. This allows for tailored processing power, from energy-efficient solutions to high-performance configurations up to 3.5 GHz. The LGA-1200 package ensures secure installation, while the DMI x4 link enables high-speed communication. Intel® technologies like Turbo Boost, Hyper-Threading, and Virtualisation enhance performance and efficiency. Processor selection optimises performance, platform stability, and long-term compatibility.
Industrial-Grade Foundation: Intel® Q470E Chipset
The Intel® Q470E chipset provides the stability and advanced features crucial for industrial deployments in smart manufacturing, healthcare, and retail. Designed for corporate and industrial markets, it offers enhanced functionality, robust security, and manageability. Extended product lifecycles and potential support for Intel AMT for remote management reduce downtime and operational costs.
High-Capacity, High-Speed Memory
Supporting up to 128GB DDR4 2666 SDRAM across four DIMM sockets, this motherboard efficiently manages large datasets and multiple applications for complex industrial control and automation. DDR4 offers improved bandwidth and energy efficiency. The high memory capacity ensures responsiveness in real-time industrial applications.
Versatile Storage Options
Five SATAIII ports (6Gb/s) and dual ports via backplane accommodate diverse storage needs. RAID support (0, 1, 5, 10) allows for performance optimisation and data redundancy. An M.2 Type M 2280 slot is ideal for high-speed NVMe SSDs, improving boot times and application loading.
Extensive Expansion and Connectivity
Adapt to various industrial peripherals with a flexible PCIe interface (x16, dual x8, or x8 and dual x4), a configurable PCIe x4 (or four x1) slot, and four legacy PCI slots. The I/O interface includes two RS-232 and two selectable RS-232/422/485 serial ports, four backplane USB 2.0, four onboard USB 3.2 (Gen2), and two rear bracket USB 3.2 (Gen2) ports. An onboard 8-bit GPIO enables custom control. Dual Gigabit Ethernet provides network redundancy and load balancing.
Independent Triple Display Support
The integrated Intel® graphics engine supports independent triple displays via VGA, DVI-D, and onboard HDMI, ideal for control rooms, digital signage, and machine vision.
Built for Industrial Demands
Engineered for reliability, the motherboard features an AMI UFEI BIOS, a programmable watchdog timer, and onboard hardware monitoring. It operates from 0°C to 60°C with high humidity tolerance and boasts an MTBF over 100,000 hours at 40°C. CE and FCC Class A certifications ensure compliance.
Ideal for Industrial Computing
This robust and versatile industrial motherboard provides the performance, reliability, connectivity, and durability required for a wide range of demanding industrial applications, serving as a solid foundation for your critical computing solutions.
Specifications
| SYSTEM | PROCESSOR | Intel® Core™ i3/i5/i7/i9/ Pentium®/ Celeron® processors up to 3.5 GHz(35~95W) in LGA-1200 package
DMI x4 Link: 5.0GT/s Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring Trusted Execution and SpeedStep Technology (depends on CPU SKU) |
| CHIPSET | Intel® Q470E | |
| BIOS | AMI UFEI BIOS | |
| MEMORY | Supports up to 128GB DDR4 2666 SDRAM on four 288-pin DIMM sockets
Supports Non-ECC |
|
| STORAGE DEVICES | 5 x SATAIII drives (Dual ports via Backplane)
Supports RAID 0, 1, 5, 10 1 x M.2 Type M 2280 (on bottom side) |
|
| WATCHDOG TIMER | Programmable via S/W from 0.5 sec. to 254.5 sec | |
| HARDWARE MONITORING | System monitor (Voltage, Fan Speed and Temperature) | |
| I/O INTERFACE | EXPANSION INTERFACE | From CPU: 1x PCIe x16 or 2x PCIe x8 or 1x PCIe x8 + 2x PCIe x4 by jumper
setting (Gen3 up to 8.0 GT/s) From PCH: 1x PCIe x4 or 4x PCIe x1 by BIOS support (Gen 3 up to 8.0 GT/s) 4x PCI devices at 32bit 33MHz |
| EMBEDDED CONTROLLER | ITE IT5121E-I | |
| AUDIO | Intel® PCH built-in High Definition Audio up to 192-kHz 32-bit
Realtek ALC888S HDA codec, 7.1 channels One on board audio pin header |
|
| ETHERNET | Intel® WGI219LM + WGI210AT Gigabit Ethernet controller
Dual 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet PCI Express x1 interface based on Gigabit Ethernet Dual RJ-45 connectors with two LED indicators |
|
| SERIAL PORTS | 2 x RS-232 ports
2 x RS-232/422/485 selectable LPC to COM port IC: Fintek F81216DG |
|
| USB | 4x USB 2.0 ports (through backplane)
480Mb/s bus capable of high-speed/full-speed/low-speed data ranges 4 x USB 3.2(Gen2) ports on board 10Gbps bus capable of high-speed/ full-speed/low-speed data ranges 2 x USB 3.2(Gen2) ports on bracket 10Gbps bus capable of high-speed/ full-speed/low-speed data ranges |
|
| KEYBOARD & MOUSE | 1 x 10 pin box header for external PS/2 KB & MS | |
| GPIO | On board programmable 8-bit Digital I/Os | |
| DISPLAY | GRAPHICS CONTROLLER | Intel® Core™ i3/i5/i7/i9 processors integrated graphics engine
Provides improved 3D multimedia capabilities including Microsoft DirectX 12, OpenGL 4.5 |
| DISPLAY INTERFACE | Supports independent triple display by
VGA on bracket: Resolution up to 1920×1200 @ 60Hz DVI-D on bracket: up to 1920×1200 @ 60Hz (VGA + DVI-D on bracket by DVI-I port) HDMI on board: up to 4096×2160 @ 30Hz |
|
| MECHANICAL | DIMENSIONS | 338.5mm (L) x 126.39mm (W), 13.33” (L) x 4.98”” (W)
PCB: 10 layers |
| POWER SUPPLY | Typical: +12V, +5V
Support ATX mode |
|
| ENVIRONMENT | Operating Temperature: 0°C ~ 60°C
Storage Temperature: -20°C ~ 80°C Relative Humidity: 5 ~ 90%, non-condensing |
|
| MTBF | Over 100,000 hours at 40°C | |
| CERTIFICATIONS | CE,FCC Class A | |
| PACKING LIST | STANDARD | SATA III cable
PICMG SBC Handling and Installation Notice DVI-D + VGA cable Dual Head COM port cable with bracket Installation CD |
| OPTIONAL | PS/2 Keyboard / Mouse Cable with bracket
USB port cable with bracket USB 3.0 cable with bracket |
