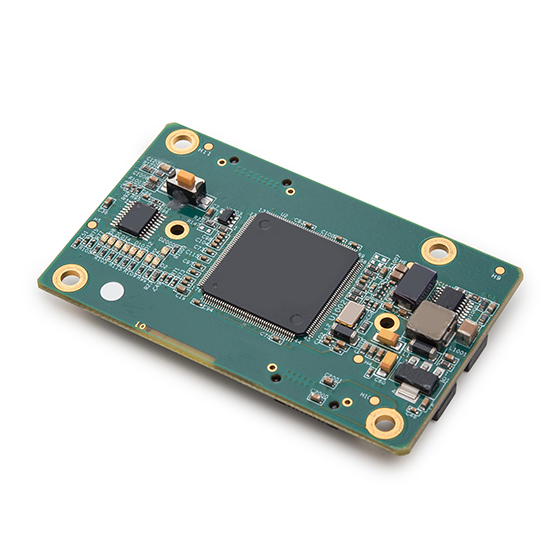

MILTECH 309 – FAST EMBEDDED MILITARY BOARD LEVEL ETHERNET SWITCH (ESOB) – 8 PORT
The MILTECH 309 Fast Ethernet switch on board (ESoB) is a complete system-level board with eight 10/100Mbps ports. With board-to-board connectors, it serves as a robust solution for providing local area network (LAN) connectivity to IP-enabled computing and netcentric systems.
Specifications
| Product Model | MILTECH 309 |
| Management | Unmanaged |
| Ports | 8 x 10/100 |
| IMMERSION | IP68 |
| DIMS | 71mm x 43.18mm x 11.4mm |
| Connector | Power + LAN : Samtec Board-to-Board |
| Weight | 40 g |
| Operating Temp | -45°C to +85°C |
| MIL-STD | MIL-STD-466E, MIL-STD-810FGM ⃰ |
| Power | 5VDC, 2W (Typical) |
Please download datasheet below for full product information
