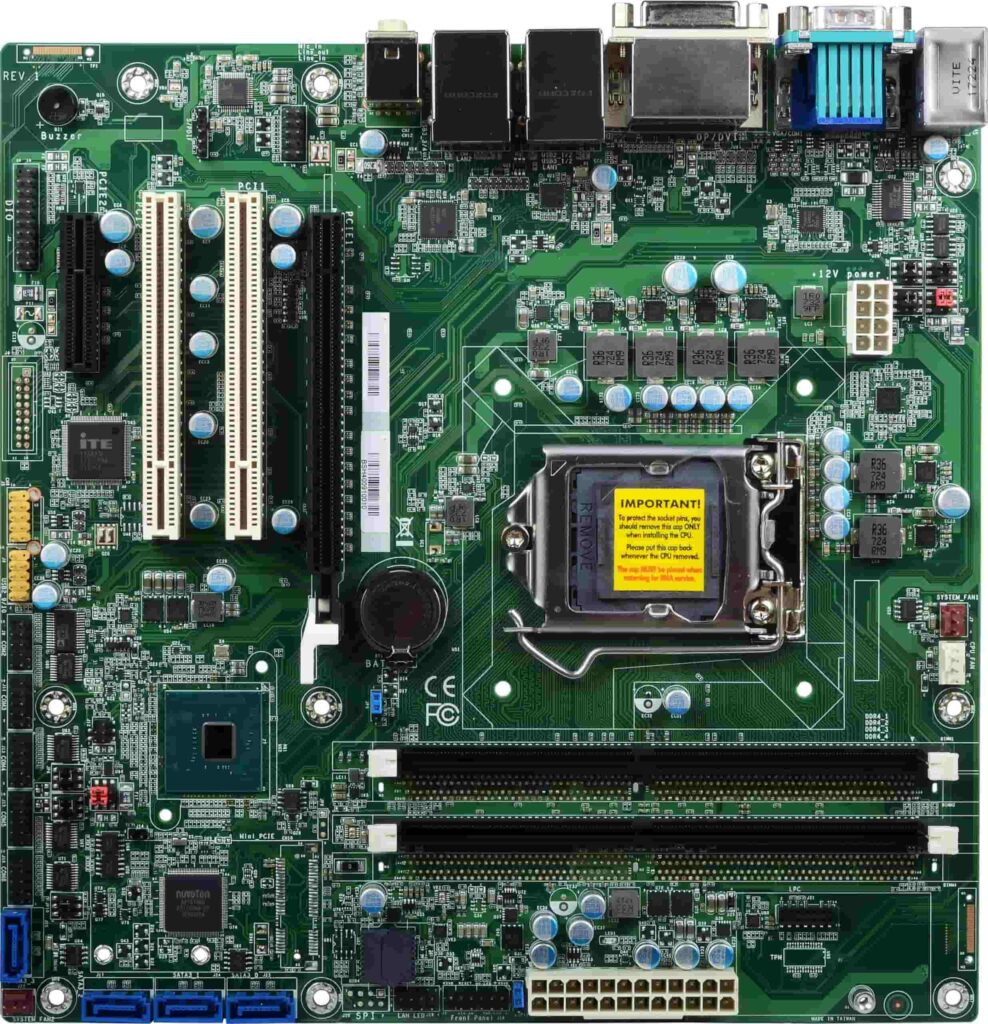

MBU4151 – Micro ATX Motherboard
- Intel 8th/9th Gen Intel® Core™ with Intel® H310
- 2 DDR4 DIMM up to 64GB
- Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI
- 2 independent displays: VGA, DVI-D, DP++
- Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.1, 6 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2′ 33 (Based on Intel IOTG Roadmap)

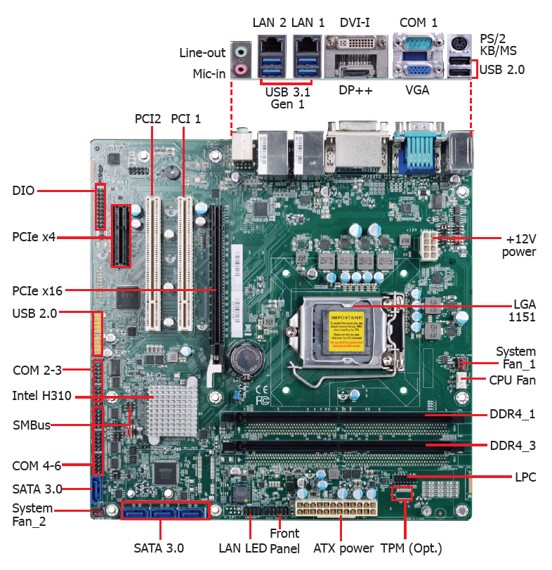

Specifications
| SYSTEM | PROCESSOR | 8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors: Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W (Non-LTS) Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W9th Generation Intel® Core™ LGA 1151 Socket Processors: Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W |
| CHIPSET | Intel® H310 Chipset | |
| MEMORY | Two 288-pin DIMM up to 64GB
Dual Channel DDR4 2400/2666 MHz |
|
| BIOS | Insyde SPI 128Mbit | |
| GRAPHICS | CONTROLLER | Intel® HD Gen 9 Graphics |
| FEATURE | OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 |
|
| DISPLAY | 1 x VGA
1 x DVI-I (DVI-D signal) DVI-D: resolution up to 1920×1200 @ 60Hz |
|
| DUAL DISPLAYS | VGA + DVI-D / VGA + DP++ / DP++ + DVI-D | |
| EXPANSION | INTERFACE | 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 2)2 x PCI |
| AUDIO | AUDIO CODEC | Realtek ALC888 |
| ETHERNET | CONTROLLER | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe (10/100/1000Mbps) |
| REAR I/O | ETHERNET | 2 x GbE (RJ-45) |
| SERIAL | 1 x RS-232/422/485 (RS-232 w/power (DB-9) | |
| USB | 4 x USB 3.1 Gen 1
2 x USB 2.0 |
|
| PS/2 | 1 x PS/2 (mini-DIN-6) | |
| DISPLAY | 1 x VGA
1 x DVI-I (DVI-D signal) |
|
| AUDIO | 1 x Line-out 1 x Mic-in 1 x Line-in (opt.) (MOQ required) |
|
| INTERNAL I/O | SERIAL | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 |
| USB | 4 x USB 2.0 (2.54mm pitch) | |
| AUDIO | 1 x S/PDIF 1 x Front Audio Header |
|
| SATA | 4 x SATA 3.0 (up to 6Gb/s) | |
| DIO | 1 x 8-bit DIO | |
| LPC | 1 x LPC | |
| SMBUS | 1 x SMBus | |
| WATCHDOG TIMER | System Reset, Programmable via Software from 1 to 255 sec/min | |
| SECURITY TPM | TPM 1.2/2.0 (Available Upon Request) (MOQ required) | |
| TYPE | ATX | |
| CONNECTOR | 8-pin ATX 12V power 24-pin ATX power |
|
| CONSUMPTION | Typical: i7-8700K: 3.3V @ 0.29A (0.957Watt); 5V @ 0.53A (2.65Watt); 12V @ 1.08A (12.96Watt) Max.: i7-8700K:3.3V @ 0.49A (1.617Watt); 5V @ 0.53A (2.65Watt); 12V @ 13.39A (160.68Watt) |
|
| RTC BATTERY | CR2032 Coin Cell | |
| OS SUPPORT | Windows 10 Pro 64-bit
Windows 10 IoT Enterprise 64-bit Linux |
|
| ENVIRONMENT | TEMPERATURE | Operating: 0 to 60°C Storage: -40 to 85°C without RTC Battery; -30 to 60°C with RTC Battery |
| HUMIDITY | Operating: 5 to 90% RH
Storage: 5 to 90% RH |
|
| MTBF | 535,676 hrs @ 25°C; 352,865 hrs @ 40°C ; 303,603 hrs @ 45°C ; 189,856 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
|
| MECHANICAL | DIMENSIONS | microATX Form Factor 244mm (9.6″) x 244mm (9.6″) |
| HEIGHT | PCB: 1.6mm Top Side: 31.47mm, Bottom Side: 4.4mm |
|
| CERTIFICATIONS | UL, CE, FCC, RoHS |
