MBU4113 – Micro ATX Motherboard
- Intel 6th/7th Gen Intel® Core™ with Intel® Q170
- 4 DDR4 DIMM up to 64GB
- Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI
- 3 independent displays: VGA + DVI-I + DP++
- Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.0, 6 USB 2.0
- 15-Year CPU Life Cycle Support Until Q3′ 30 (Based on Intel IOTG Roadmap)
Specifications
| SYSTEM | PROCESSOR | 6th/7th Generation Intel® Core™/Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W |
| CHIPSET | Intel® Q170 Chipset | |
| MEMORY | Four 288-pin Non-ECC DIMM up to 64GB
Dual Channel DDR4 1866/2133MHz |
|
| BIOS | Insyde SPI 128Mbit | |
| GRAPHICS | CONTROLLER | Intel® HD Gen 9 Graphics |
| FEATURE | OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264,MPEG2,VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 |
|
| DISPLAY | 1 x VGA 1 x LVDS 1 x DVI-I (DVI-D signal) 1 x DP++ VGA: resolution up to 1920×1200 @ 60Hz LVDS: dual channel, resolution up to 1920×1200 @ 60Hz DVI-I: resolution up to 1920×1200 @ 60Hz DP++: resolution up to 4096×2160 @ 60Hz |
|
| TRIPLE DISPLAYS | VGA + DVI-I (DVI-D signal) + DP++ VGA + LVDS + DP++ VGA + LVDS + DVI-I (DVI-D signal) LVDS + DVI-I (DVI-D signal) + DP++ |
|
| EXPANSION | INTERFACE | 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 3) 2 x PCI 1 x Full-size Mini PCIe (USB/PCIe/mSATA, PCIe by default) 1 x SIM (opt., MOQ required) |
| AUDIO | AUDIO CODEC | Realtek ALC888S-VD2-GR |
| ETHERNET | CONTROLLER | 1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) |

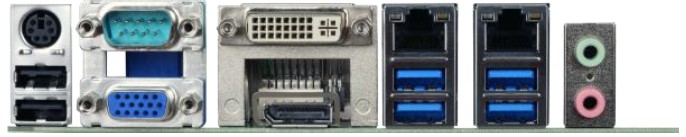

| REAR I/O | ETHERNET | 2 x GbE (RJ-45) |
| SERIAL | 1 x RS-232/422/485 (RS-232 w/power (DB-9) | |
| USB | 4 x USB 3.0
2 x USB 2.0 |
|
| PS/2 | 1 x PS/2 (mini-DIN-6) | |
| DISPLAY | 1 x VGA
1 x DVI-I (DVI-D signal) |
|
| AUDIO | 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) | |
| INTERNAL I/O | SERIAL | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch) |
| USB | 2 x USB 3.0 (2.00mm pitch)
4 x USB 2.0 (2.54mm pitch) |
|
| AUDIO | 1 x Audio (Line-out/MIC-in) (opt., MOQ required)
1 x S/PDIF |
|
| SATA | 4 x SATA 3.0
RAID 0/1/5/10 |
|
| DIO | 1 x 8-bit DIO | |
| LPC | 1 x LPC (supports LPC EXT-RS232/RS485 module) | |
| SMBUS | 1 x SMBus | |
| OUTPUT & INTERVAL | System Reset, Programmable via Software from 1 to 255 Seconds | |
| SECURITY TPM | Opt., MOQ required | |
| TYPE | ATX | |
| CONNECTOR | 8-pin ATX 12V power
24-pin ATX power |
|
| CONSUMPTION | Idle: i5-6500 65W: 12V @ 1.5055A (18.0660W), 5V @ 0.7370A (3.6850W), 3.3V @ 0.7249 (2.3921W) Max: i5-6500 65W: 12V @ 7.4060A (88.8720W), 5V @ 0.7698A (3.8490W), 3.3V @ 0.8004A (2.6413W) |
|
| RTC BATTERY | CR2032 Coin Cell | |
| OS SUPPORT | Windows 10 64-bit
Windows 7 32/64-bit Windows 8.1 64-bit Linux (Note: 7th Gen CPUs only support Windows 10 64-bit & Linux) |
|
| ENVIRONMENT | TEMPERATURE | Operating: 0 to 60°C Storage: -40 to 85°C |
| HUMIDITY | Operating: 5 to 90% RH
Storage: 5 to 90% RH |
|
| MTBF | 363,066 hrs @ 25°C; 204,404 hrs @ 45°C; 127,841 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled |
|
| MECHANICAL | DIMENSIONS | microATX Form Factor 244mm (9.6”) x 244mm (9.6″) |
| HEIGHT | PCB: 1.6mm
Top Side: 38.5mm Bottom Side: 4.40mm |
|
| CERTIFICATIONS | CE, FCC, RoHS, UL |
