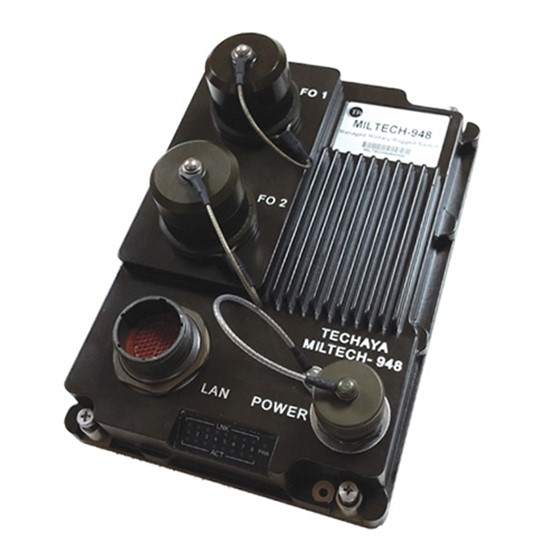

MILTECH 948 – COMPACT 10 PORT MILITARY MANAGED GIGABIT ETHERNET SWITCH WITH 2 FIBER OPTIC LAN CHANNELS
Developed for military and harsh avionic applications, such as helicopters, the MILTECH™ 948 features mechanical packaging enhancements designed to withstand excessive vibration and temperature variation to meet MIL-STD-810G airborne and ground environmental compliance. Using nominal 24 VDC power the MILTECH 948 can be easily integrated in to most vehicle and avionic electronic systems.
Specifications
| Product Model | MILTECH 948 |
| Management | Managed |
| Ports | 6 x 10/100/1000 + 2 x 1000BaseX |
| IMMERSION | IP67 |
| DIMS | 209 mm x 146 mm x 63 mm |
| Connector | Power + LAN : MIL-D-38999, Fiber connectors: FS4H8000-6A300 |
| Weight | 1.1 Kg |
| Operating Temp | -45°C to +85°C |
| MIL-STD | MIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A |
| Power | 18-32VDC, 7W (Typical) |
Please download datasheet below for full product information
