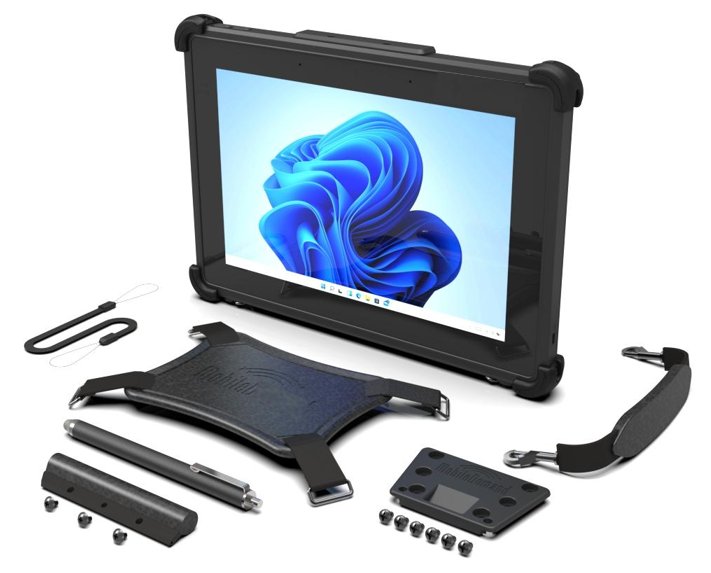

TBL1110W Rugged Tablet
- Windows 11 Pro operating system
- 10.1″ 1280 x 800 display
- 3-year warranty as standard
- Sunlight Viewable display
- Intel® Pentium N6415 processor
- MIL-STD 810G drop/shock tested
- 8Gb DDR4 memory & 256GB storage
- IP65 sealed for water & dust protection
Specifications
| SYSTEM | DIMENSIONS | 274mm W x 189mm H x 15mm D
10.78″ W x 7.44″ H x .59″ D |
| WEIGHT | 995g
2.19lbs |
|
| DISPLAY | 10.1″ Sunlight Viewable WUXGA 800 x 1280 LCD; 500 nits
10-point multi-touch capacitive screen |
|
| DROP/SHOCK | MIL-STD 810G, Multiple 5’/1.5m Drops | |
| 1M TUMBLE TEST | 40 times | |
| STEEL BALL DROP TEST | 25mm diameter, 250gm from 50cm | |
| SEALING | IP65 (water and dust) | |
| SCREEN PROTECTOR | Standard and Anti-Glare: Oleophobic, scratch-resistant glass | |
| OPERATING TEMPERATURE | 32° F to +122° F (0° C to +50° C) | |
| STORAGE TEMPERATURE | 14° F to +140° F (-10° C to +60° C) | |
| HUMIDITY | 5% to 95% | |
| PERFORMANCE | PROCESSOR | Intel® Pentium N6415 (Quad Core)
1.20 GHz burstable to 3.00 GHz |
| MEMORY | 8GB LPDDR4 (on board) | |
| STORAGE | 256GB; M.2 SSD PCIe Gen3 | |
| OPERATING SYSTEM | Windows 11 Professional 64-bit
Optional: Windows 11 IOT Enterprise; Windows 10 Downgrade; 2019 LTSC |
|
| INTEGRATED GRAPHICS | Intel UHD Graphics | |

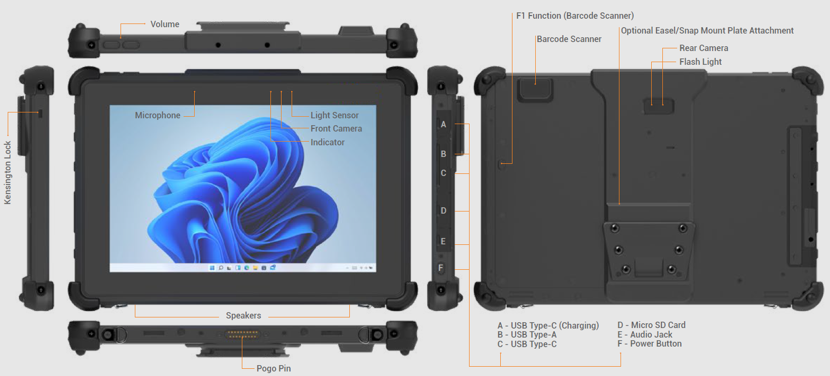

| I/O PORTS | USB 3.1 Type-A
USB Type-C 3.0 (PD-in) USB Type-C 3.1 (with DisplayPort) Micro SD Card Audio Jack USB (2.0) Docking Connector (19 Pin Pogo) |
|
| CAMERA | Front – 2MP & Rear – 8MP AF with flash | |
| AUDIO | Realtek Audio, Dual microphone array, 2 integrated speakers | |
| SCANNER | Optional Honeywell N4680 2D barcode scanner | |
| BUTTONS | Function (including scan function)
Power Volume +/- |
|
| SENSORS | Accelerometer
Gyroscope E-Compass |
|
| BATTERY | 7.7V, 43Wh, 5585mAh Li-Polymer
Up to 12Hr battery life |
|
| SECURITY | Kensington Lock
TPM 2.0 |
|
| WIRELESS & NETWORK | WIRELESS | WLAN:
Wi-Fi 802.11 a/b/g/n/AC/AX Intel Wi-Fi 6 AX200 Bluetooth: 5.2 GPS: Ublox NEO-M8N |
| APPROVALS | APPROVALS | FCC, IC, CE, UKCA, RoHS, WEEE |
| WARRANTY | WARRANTY | 3-year warranty as standard
Option to extend warranty |

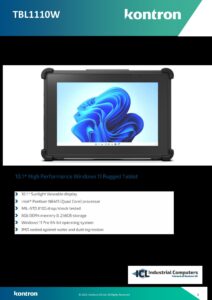

Downloads
