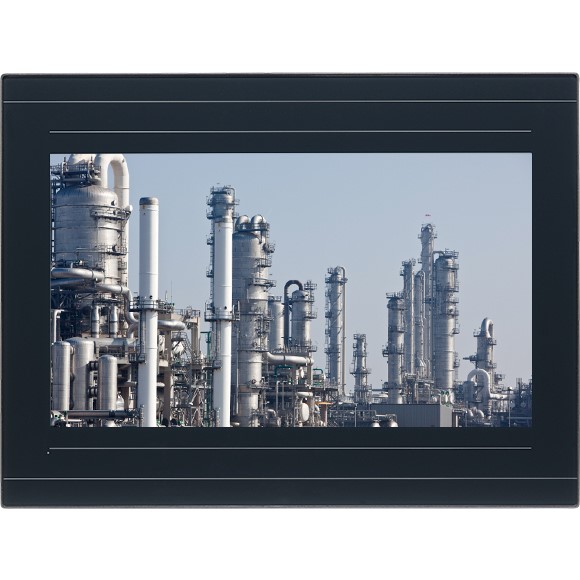

PPC1017 – Panel PCs
- 15.6” TFT HD 16:9 Industrial Panel
- 6th Gen Core™ i3 or i5 processor
- Metal housing, robust aluminium bezel
- 10 points P-Cap multi-touch panel
- 2 LAN/2 DisplayPort/USB 3.0 & USB 2.0
- 1 x mPCIe, 1 x M.2, 1 x RS232/422/485
- DDR3L 4GB/2.5” HDD bracket
- IP66 compliant front panel
- Panel/wall/stand/VESA mount
- Power input 24VDC
Specifications
| PANEL | LCD size: 15.6”, 16:9
Resolution: HD (WXGA) 1366 x 768 Luminance: 400cd/m2 Contrast ratio: 500 LCD colour: 16.7M Viewing angle: 80 (U), 80 (D), 85 (L), 85 (R) Backlight: LED |
|
| TOUCH SCREEN | Ten points P-Cap (projected capacitive touch)
Touch light transmission: 87% Anti-scratch surface: 7H hardness Touch interface: USB |
|
| SYSTEM |
|
|

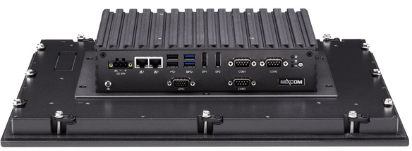

| REAR I/O | Ethernet: 2 x RJ45
2nd DisplayPort: 2 x DP1.2 USB: 2 x USB 2.0, 2 x USB 3.0 LED indicator: power/HDD/GPIO programmable LED Power button COM #1: RS232/422/485 COM #2&3: RS232 |
|
| AUDIO | N/A | |
| ETHERNET | LAN chip: dual Intel® I210-AT Gigabit LAN
Ethernet interface: 10/100/1000 based-Tx Ethernet compatible |
|
| MECHANICAL & ENVIRONMENTAL | Colour: black silver front bezel

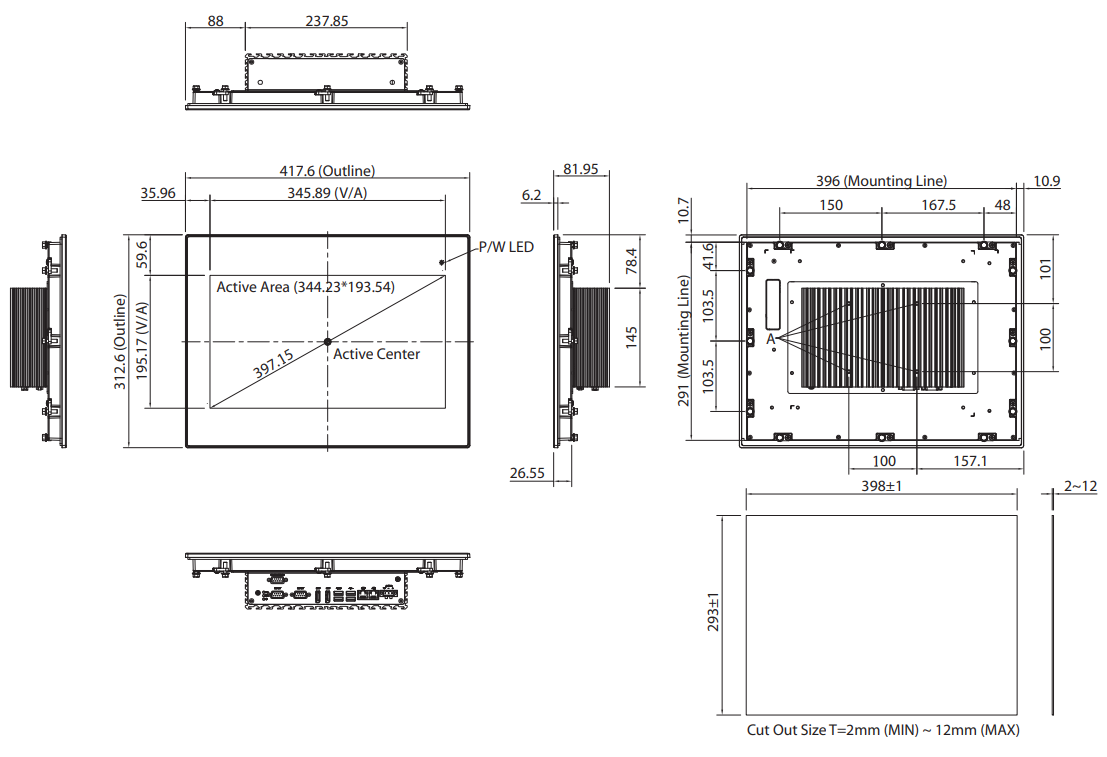

IP protection: IP66 front Mounting: panel/wall/stand/VESA 100mm x 100mm System with panel mounting kit w/o panel mounting hole Power: – Power input: 24 VDC – Power adapter: optional AC to DC power adapter (+24V, 60W) Vibration: – IEC 68 2-64 (w/ HDD) – 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating) – 2Grms @ sine, 5~500Hz, 1hr/axis (SSD operating) – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock: – IEC 68 2-27 – HDD: 20G@wall mount, half sine, 11ms Temperature: – Operating temperature: 0°C to 50°C – Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing Dimension: 417.6 x 312.6 x 81.95 mm Weight: 5.98 kg |
|
| CERTIFICATIONS | CE (including EN61000-6-2/EN61000-6-4)
FCC class A |
|
| OS SUPPORT | Windows 10 64-bit | |
| OPTIONS | 24V, 120W AC/DC power adapter w/o power cord |
