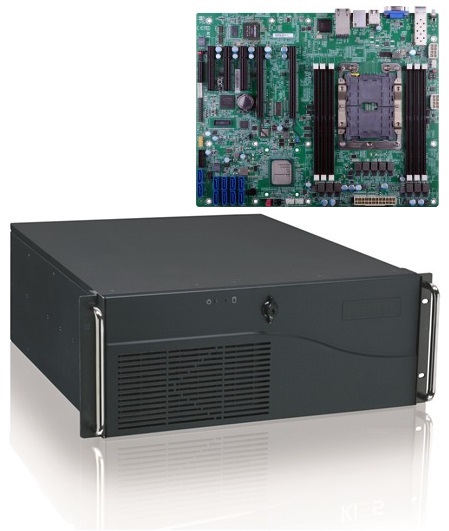

ICOM4133 4U Rackmount Computer
- 4U 19” Industrial rackmount system
- 18.58″ Depth
- 5 PCIe expansion slots
- Supports Intel® Xeon® processors
- Intel® C622 Chipset
- 6 288-pin DDR4 RDIMMs up to 192GB
- 1 Display Output: VGA
- I/O: 2 LAN, 1 dedicated IPMI LAN, 1x Fiber 10 GbE, 1 COM, 6 SATA 3.0, 5 USB 2.0, 2 USB 3.0
- Windows 10 Pro / IoT, server 2012R2 – 2016 & Linux Support
- CPU Life Cycle Support Until Q2 2025
Specifications
| PROCESSOR | Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP up to 145W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W |
| CHIPSET | Intel® C622 Chipset |
| MEMORY | Six 288-pin RDIMM up to 192GB DDR4 1600/1866/2133/2400/2666 MHz |
| BIOS | SPI 128Mbit |
| STORAGE | Supports 3x 5.25” SATA drive bays
Supports RAID 0, 1, 5, 10 1 x M.2 2280 M key (PCIe Gen3 x 4 NVMe/SATA) Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 2 x PCIe x16 (Gen 3)
1 x PCIe x8 (Gen 3) 2 x PCIe x4 (Gen 3) |
| POWER SUPPLY OPTIONS | 400W ~ 600W
90~250VAC DC 12~48V 500W Redundant Power Supplies |
| AUDIO | N/A |
| ETHERNET | GbE: i350-AM2
10GbE: CS4227 IPMI: RTL8211F |
| OPERATING SYSTEMS SUPPORTED | Windows 10 IoT Enterprise LTSB RS1(64-bit)
Windows Server 2012R2 Windows Server 2016 Linux |
| DISPLAY | 1 x VGA |
| MULTI-DISPLAY OUTPUTS | N/A |
| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x dedicated IPMI LAN 1x Fiber 10 GbE 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232 (2.54mm pitch)
2 x USB 2.0 (2.54mm pitch) 1 x Vertical USB 2.0 2 x USB 3.0 |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 3x 5.25” SATA drive bays
1x 2.5”/ 3.5” SATA drive internal RAID support |
| MOTHERBOARD MTBF | 493,780 hrs @ 25°C; 290,407 hrs @ 45°C ; 187,006 hrs @ 60°C
Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operation Temperature: 0 °C to +50 °C continuous operation
Storage Temperature: -20 °C to +70 °C Humidity: 10 % to 93 % @40 °C, non-condensing (Dependent on overall system specification) |
| VIBRATION | Operating: 10-150 Hz: 1G/3 axis
Non-operating: 10-150 Hz: 2G/3 axis |
| COOLING | Removable air filter
Two low noise hot-swap system cooling fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 177 x 482 x 472 mm (4U x 19” x 18.58”) |
