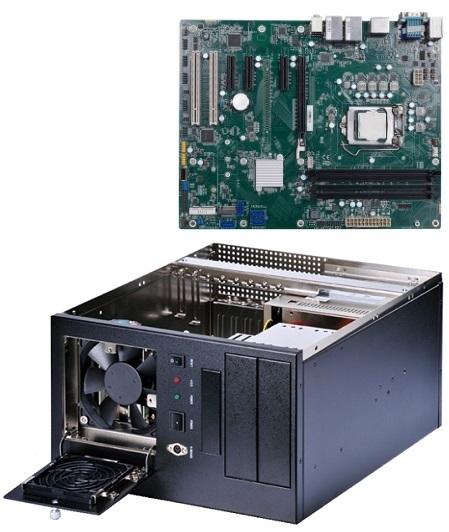

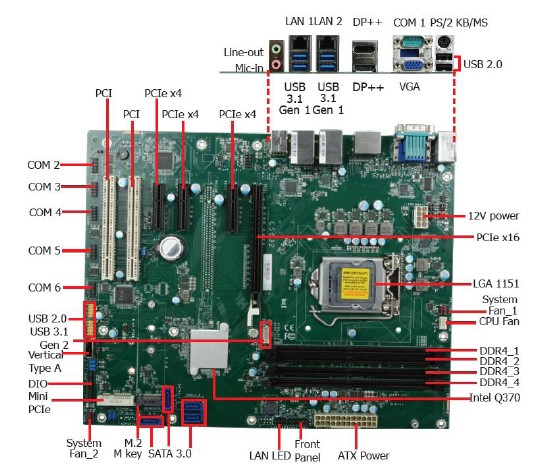

ICOM747 – 7 Slot ATX Systems

Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W (Non-LTS)

Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W

Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W

Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W

Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W

Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W

Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W

Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W

Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W

Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W

Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W

9th Generation Intel® Core™ LGA 1151 Socket Processors:

Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W

Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W

Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W

Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W

Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W

Supports RAID 0, 1, 5, 10

1 x Mini PCIe (PCIe/mSATA, share w/SATA conn. as opt./USB2.0)
1 x M.2 2242/2280 M key (PCIe x4 NVMe, Intel Optane Memory Support)

Optional removable hard disk drives or solid state disks

3 x PCIe x4 (Gen 3)

2 x PCI

90~250VAC

DC 12~48V

Redundant Power Supplies

1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

Windows 10 IoT Enterprise 64-bit

Linux

2 x DP++ resolution up to 4096×2160 @ 60Hz

1 x RS-232/422/485 (RS-232 w/power (DB-9)

4 x USB 3.1 Gen1

2 x USB 2.0

1 x PS/2 (mini-DIN-6)

1 x VGA

2 x DP++

1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)

2 x USB 3.1 Gen2 (2.00mm pitch)

5 x USB 2.0 (2.54mm pitch) (4 x Pin Header, 1 x USB2.0 vertical Type A)

Optional USB ports

1x external 3.5”

1x internal 3.5”

Calculation Model: Telcordia Issue 4

Environment: GB, GC – Ground Benign, Controlled

Storage Temperature: -20 °C to +70 °C

Humidity: 10 % to 93 % @40 °C, non-condensing

(Dependent on overall system specification)
