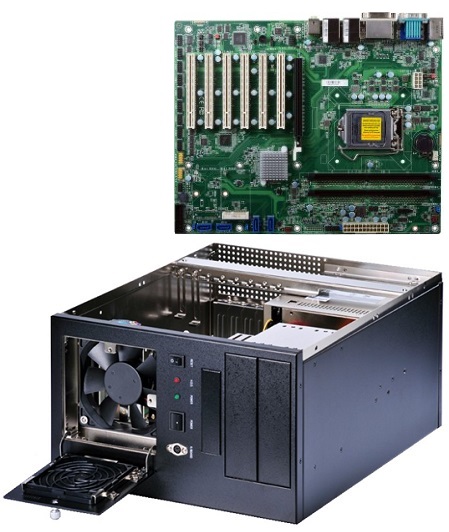

ICOM744 – 7 Slot ATX Systems
- Wallmount/Desktop Industrial system
- 16″ x 8″ x 13″ (D x H x W)
- 1 PCIe & 6 PCI expansion slots
- Supports Intel® 6th/7th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® H110 Chipset
- 2 DDR4 DIMMs up to 32GB
- 2 Display Outputs: VGA, DVI-I, DP++
- I/O: 2 LAN, 10 COM, 4 USB 3.0, 6 USB 2.0
- Windows 7, 10 Pro / IoT & Linux
- CPU Life Cycle Support Until Q1 2032
Specifications
| PROCESSOR | 6th/7th Generation Intel® Core™/Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W |
| CHIPSET | Intel® H110 Chipset |
| MEMORY | Two 288-pin DIMM up to 32GB
Dual Channel DDR4 2133/2400MHz |
| BIOS | SPI 128Mbit |
| STORAGE | Supports 2x external 5.25”, 1x external 3.5” & 1x internal 3.5” drive bays
Supports 4 x SATA3.0 Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 1 sec. to 255 sec. |
| EXPANSION SLOTS | 1 x PCIex16
6 x PCI |
| POWER SUPPLY OPTIONS | 400W ~ 600W
90~250VAC DC 12~48V Redundant Power Supplies |
| AUDIO | Realtek ALC888S-VD2-GR |
| ETHERNET | 1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe (10/100/1000Mbps) |
| OPERATING SYSTEMS SUPPORTED | Windows 10 64-bit
Windows 7 32/64-bit Windows 8.1 64-bit Linux (Note: 7th Gen CPUs only support Windows 10 64-bit & Linux) |
| DISPLAY | 1 x VGA 1 x DVI-I (DVI-D signal)1 x DP++ VGA: resolution up to 1920×1200 @ 60HzDVI-I: resolution up to 1920×1200 @ 60Hz DP++: resolution up to 4096×2160 @ 60Hz |
| MULTI-DISPLAY OUTPUTS | Supports Dual Displays:
VGA + DVI-I (DVI-D signal) DVI-I (DVI-D signal) + DP++ VGA + DP++ |
| REAR I/O PORTS | 2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/power (DB-9) 4 x USB 3.0 2 x USB 2.0 1 x PS/2 (mini-DIN-6) 1 x VGA 1 x DVI-I (DVI-D signal) 1 x DP++ 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required) |
| OPTIONAL PORT EXPANSION FROM MOTHERBOARD | 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
8 x RS-232 4 x USB 2.0 |
| FRONT CHASSSIS CONNECTORS | PS/2 keyboard connector in front panel
Optional USB ports |
| DRIVE BAYS | 2x external 5.25”
1x external 3.5” 1x internal 3.5” drive bay |
| MOTHERBOARD MTBF | 499,656 hrs @ 25°C; 277,331 hrs @ 45°C; 171,780 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled |
| ENVIRONMENT | Operation Temperature: 0 °C to +50 °C continuous operation
Storage Temperature: -20 °C to +70 °C Humidity: 10 % to 93 % @40 °C, non-condensing (Dependent on overall system specification) |
| COOLING | 12cm ball-bearing fan with replaceable filter |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 330 x 406 x 204.2 mm (13 x 16 x 8 inches) |
