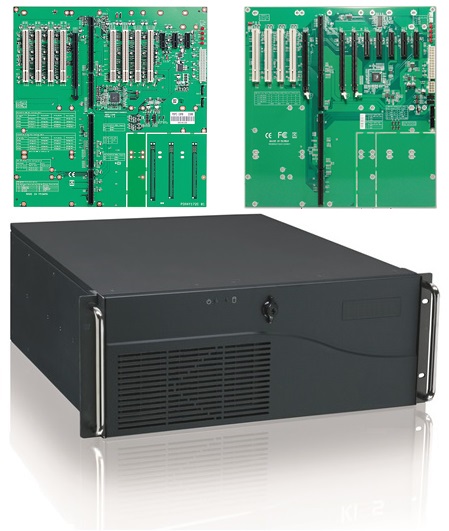

ICOM4105 4U Rackmount Computer
- 4U 19” Industrial rackmount system
- 18.58″ Depth
- PCIe or PCI options up to 13 slots
- Supports Intel® 8th/9th Gen processors
- Intel® Core™, Pentium® & Celeron CPUs
- Intel® Q370 chipset, RAID 0/1/5/10
- 4 DDR4 SO-DIMMs up to 128GB
- 3 Display Outputs: VGA, DVI-D & HDMI
- I/O: 2 LAN, 4 COM, 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 4 USB 2.0
- Windows 10 Pro / IoT & Linux Support
- CPU Life Cycle Support Until Q1 2033
Specifications
| PROCESSOR | Intel® Core™ i3/i5/i7/ Pentium®/ Celeron® processors up to 3.6GHz (35~95W) in LGA-1151 package
DMI x4 Link: 5.0GT/s Support Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution and Speed Step Technology (based on CPU model) |
| CHIPSET | Intel® Q370 PCH |
| MEMORY | Supports up to 128GB DDR4 2133 SDRAM on four 260-pin SO-DIMM sockets |
| BIOS | AMI UFEI BIOS (SPI ROM) |
| STORAGE | Supports 3x 5.25” SATA drive bays
Supports RAID 0, 1, 5, 10 1 x M.2 Type M 2280 (on bottom side) Optional removable hard disk drives or solid state disks |
| OPTICAL | DVD±RW (±R DL) / DVD-RAM drive |
| WATCHDOG TIMER | Programmable via S/W from 0.5 sec. to 255 sec. |
| HARDWARE MONITORING | System monitor (Voltage, Fan speed and Temperature) |
| SLOT CONFIGURATIONS/OPTIONS | Option 1: 11-slot [PCIe x16 (1), PCIe x16 (2 x8 signal), PCIe x8 (4, x1 signal), PCI (3)]
Option 2: 12-slot [PCIe x16 (1 x8 signal), PCIe x8 (2 x4 signal), PCIe x4 (4 x1 signal), PCI (4)] Option 3: 12-slot [PCIe x16 (1), PCIe x8 (1 x4 signal), PCI (9)] Option 4: 12-slot [PCI-X (8), PCIe x16 (1), PCI (2)] Option 5: 13-slot [PCIe x16 (1), PCIe x16 (2 x1 signal), PCIe x4 (5 x1 signal), PCI (4)] Option 6: 13-slot [PCIe x16 (1), PCIe x1 (3), PCI (8)] |
| POWER SUPPLY OPTIONS | 400W ~ 600W
90~250VAC DC 12~48V |
| EMBEDDED CONTROLLER | ITE IT5121E-I-128 |
| GPIO | On board programmable 8-bit Digital I/O |
| AUDIO | Intel® PCH built-in High Definition Audio up to 192-kHz 32-bit
Realtek ALC886 HDA codec, 7.1 channels One on- board audio pin header |
| ETHERNET | Intel® WGI219LM + WGI210AT Gigabit Ethernet controller
Dual 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet PCI Express x1 interface based on Gigabit Ethernet Dual RJ-45 connector with two LED indicators |
| KEYBOARD & MOUSE | 1 x 10 pin box header for external PS/2 KB & MS |
| USB | 4 x USB 2.0 ports (through backplane)
480Mb/s bus capable of high-speed/full-speed/low-speed data ranges 8 x USB 3.2 (Gen2) ports on board 10Gbps bus capable of high-speed/full-speed/low-speed data ranges 2 x USB 3.2 (Gen1) ports on bracket 5Gbps bus capable of high-speed/full-speed/low-speed data ranges |
| OPERATING SYSTEMS SUPPORTED | Windows 10 Pro
Windows 10 IoT |
| DISPLAY | Intel® Core™ i5/i7 processors integrated graphics engine
Provides improved 3D multimedia capabilities including Microsoft DirectX 12, OCL 2.x and OpenGL 4.3/4.4 |
| DISPLAY INTERFACE | Supports independent triple displays:
VGA on bracket: Resolution up to 1920 x 1200 @ 60Hz DVI-D on bracket: up to 1920 x 1200 @ 60Hz (VGA + DVI-D on bracket by DVI-I port) HDMI on board: up to 4096 x 2160 @ 24Hz |
| REAR I/O PORTS FROM SINGLE BOARD COMPUTER | 1x DVI-I (DVID-D+VGA adapter cable included)
2x RJ45 (10/100/1000) 2x USB 3.1 |
| OPTIONAL PORT EXPANSION FROM SINGLE BOARD COMPUTER | 2x RS232 ports
2x RS232/422/485 selectable 8x USB 3.0 |
| FRONT CHASSSIS CONNECTORS | 2 x USB |
| DRIVE BAYS | 3x 5.25” SATA drive bays
1x 2.5”/ 3.5” SATA drive internal RAID support |
| ENVIRONMENT | Operation Temperature: 0 °C to +50 °C continuous operation
Storage Temperature: -20 °C to +70 °C Humidity: 10 % to 93 % @40 °C, non-condensing (Dependent on overall system specification) |
| VIBRATION | Operating: 10-150 Hz: 1G/3 axis
Non-operating: 10-150 Hz: 2G/3 axis |
| COOLING | Removable air filter
Two low noise hot-swap system cooling fans |
| COLOUR | Black (all other optional colours are available upon request) |
| DIMENSIONS: | 177 x 482 x 472 mm (4U x 19” x 18.58”) |
