ICOM2517 2U Rackmount Computer

2U Industrial rackmount system
19.29” Depth
4 PCIe low profile expansion slots
Intel® 12th/13th/14th Gen processors
Intel® Core™, Pentium®, Celeron® CPUs
Intel® Q670 Chipset
4 DDR5 Non-ECC DIMM up to 128GB
4 independent displays supported
I/O: 2 LAN, 1 COM, 7 USB 3.2, 4 DP++
Motherboard Life Cycle Until 2028

Specifications

PROCESSORS	14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 2.0 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 1.1 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 2.1 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 1.3 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 2.6 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 1.7 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 3.5 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 2.7 GHz); 35W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 13th Generation Intel® Core™ Processors, LGA 1700 Socket, TDP support up to 125W Intel® Core™ i9-13900, 24-Core, 36Mb Cache, 2.0GHz (5.2GHz); 65W Intel® Core™ i7-13700, 16-Core, 30Mb Cache, 2.1GHz (5.1GHz); 65W Intel® Core™ i5-13500, 14-Core, 24Mb Cache, 2.5GHz (4.8GHz); 65W Intel® Core™ i3-13100, Quad Core, 12Mb Cache, 3.4GHz (4.5GHz); 60W 12th Generation Intel® Core™ Processors, LGA 1700 Socket, TDP support up to 125W Intel® Core™ i9-12900E, 16-Core, 30Mb Cache, 2.3GHz (5.0 GHz); 65W Intel® Core™ i9-12900TE, 16-Core, 30Mb Cache, 1.1Ghz (4.8 GHz); 35W Intel® Core™ i7-12700E, 12-Core, 25Mb Cache, 2.1GHz (4.8 GHz); 65W Intel® Core™ i7-12700TE, 12-Core, 25Mb Cache, 1.4GHz (4.6 GHz); 35W Intel® Core™ i5-12500E, 6-Core, 18Mb Cache, 2.90GHz (4.5 GHz); 65W Intel® Core™ i5-12500TE, 6-Core, 18Mb Cache, 2.0Ghz (4.3 GHz); 35W Intel® Core™ i3-12100E, Quad Core, 12Mb Cache, 3.3GHz (4.2 GHz); 60W Intel® Core™ i3-12100TE, Quad Core, 12Mb Cache, 2.2Ghz (4.0 GHz); 35W Intel® Pentium® G7400E, Dual Core, 6Mb Cache, 3.7GHz; 46W Intel® Pentium® G7400TE, Dual Core, 6Mb Cache, 3.1GHz); 35W Intel® Celeron® G6900E, Dual Core, 4Mb Cache, 3.4 GHz; 46W Intel® Celeron® G6900TE, Dual Core, 4Mb Cache, 2.4 GHz; 35W
CHIPSET	Intel® Q670 Chipset
MEMORY	4 DIMM Sockets DDR5-4800, max. 128GByte, Dual Channel, unbuffered, non-ECC Effective memory speed of DDR5-4800 modules according Intel® specification: 1x DIMM per channel = max. DDR5-4400 2x DIMM per channel (single rank) = max. DDR5-4000 2x DIMM per channel (dual rank) = max. DDR5-3600
BIOS	AMI Aptio 5.x (UEFI) BIOS modified and adapted by Kontron; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCIe Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5. No legacy OS support, no MBR installation (UEFI only)
STORAGE	4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10 2x M.2 2230/2242/2280 (Key-M, PCIe/NVME SSD modules), incl. NVME RAID support 1x M.2 2230 ((Key-E, WLAN/Bluetooth modules, incl. CNVi support) Optional removable hard disk drives or solid state disks
OPTICAL	Optional DVD drive
WATCHDOG TIMER	BIOS POST-/BIOS BOOT-/OS-HW Watchdog
EXPANSION SLOTS	Chassis supports 4 x low profile expansion slots Motherboard supports: 1 x PCIe x16, Gen5 1 x PCIe x4, Gen4 2 x PCIe x1, Gen3
POWER SUPPLY OPTIONS	400W ~ 600W / 90~250VAC DC 12~48V Redundant Power Supplies
AUDIO	Tempo Semiconductor 92HD91B 5.1- channel, High Definition Audio Codec
ETHERNET	LAN1: Intel® i219LM with 10/100/1000 MBit/s, iAMT features LAN2 (optional): Intel® i225LM with 10/100/1000/2500 MBit/s Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display
OPERATING SYSTEMS SUPPORTED	MS Windows 10 MS Windows 11 Linux-64 No legacy OS support, no MBR installation (UEFI only)
DISPLAY	Intel® UHD Graphics 7xx (depends on installed processor)
MULTI-DISPLAY OUTPUTS	4x DPP V1.4a up to 8K
REAR I/O PORTS	2 x GbE (RJ-45) 1 x RS-232 (DB-9) 4 x USB 3.2 Gen 1, 2 x USB3.2 Gen 2 & 1 x USB-C3.2 Gen 2 4 x DP++ 3 x Audio
OPTIONAL PORT EXPANSION FROM MOTHERBOARD	2 x USB3.2 Gen 1 2 x USB 2.0
FRONT CHASSSIS CONNECTORS	2 x USB
DRIVE BAYS	1x External 3.5” drive bay for 3.5” or 2.5” drives 1x 5.25” Drive Bay
ENVIRONMENT	Operating: 0 to 60°C* Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
VIBRATION	15 G 11 ms duration Non-operating: 30 G 11 ms duration
SYSTEM CONTROL	1x Header for Reset button, HDD LED & External Speaker, Power button, Power LED Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial/USB- Port Access Protection, Write Protection for Flash BIOS, EraseDisk (BIOS Feature), Trusted Platform Module (TPM)
COOLING	2x removable 7cm ball-bearing fans
COLOUR	Black (all other optional colours are available upon request)
DIMENSIONS:	482 (W) x 490 (D) x 88 (H); 19” (W) x 19.29 (D) x 3.46” (H)

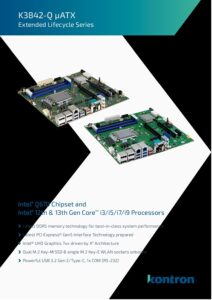

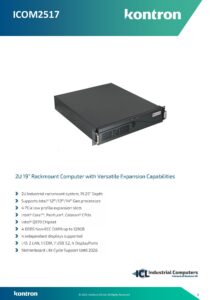

Downloads
